Why Choose the ILME CHI06LC Bulkhead Housing?

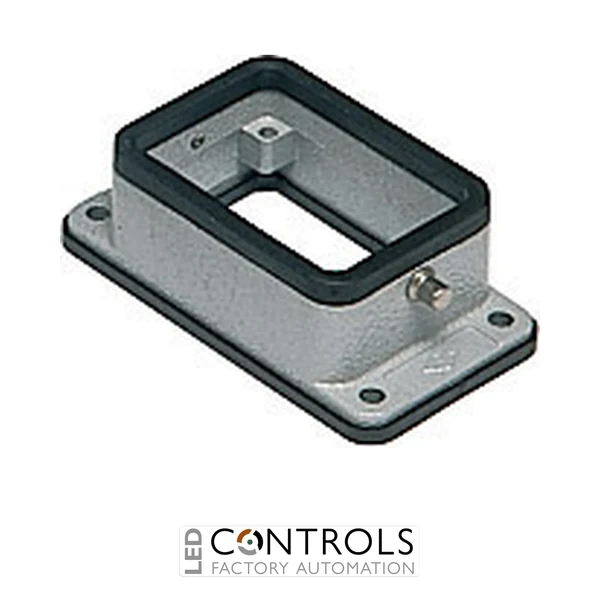

The ILME CHI06LC, manufacturer designation CHI 06 LC, is a robust bulkhead mounting housing for heavy-duty industrial connectors. Part of the ILME C-TYPE series, it is designed for size 44.27 connector inserts and features two locking pegs for secure mating with compatible ILME hoods and connector enclosures.
Designed for panel and machine mounting, the CHI06LC has no cable entry and provides a fixed interface for compatible heavy-duty connector assemblies. Its aluminium construction, NBR sealing gasket and RAL 7040 grey finish provide the mechanical durability and environmental sealing required for machinery, automation and industrial electrical installations.
When correctly assembled with compatible ILME components, the CHI06LC provides IP65, IP66 and IP69 protection. A wide operating temperature range of -40 °C to +125 °C further supports dependable use in demanding industrial environments where secure and repeatable connector mating is required.
Key Advantages
- Robust bulkhead mounting housing for heavy-duty industrial connectors.
- Two locking pegs for secure mating with compatible locking-lever enclosures.
- Designed for ILME size 44.27 connector inserts.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
- Durable aluminium construction for demanding industrial environments.
- NBR gasket supports reliable environmental sealing.
Key Features
- ILME C-TYPE series enclosure.
- Bulkhead mounting configuration.
- Size 44.27 connector format.
- Two-peg closing arrangement.
- IP65 / IP66 / IP69 degree of protection.
- Aluminium housing construction.
- NBR sealing gasket.
- RAL 7040 grey finish.
- Designed without cable entry for fixed bulkhead installation.
- Wide -40 °C to +125 °C operating temperature range.
Reliable Bulkhead Connection for Industrial Machinery
Bulkhead mounting housings provide a fixed connection point for heavy-duty multipole connectors installed on control cabinets, machinery and industrial equipment. The ILME CHI06LC mounts to a suitable panel or equipment surface and accommodates compatible size 44.27 connector inserts, creating a robust interface for detachable power, control or signal connections.
The two integral pegs engage with compatible locking levers on the mating enclosure to create a secure mechanical connection. Combined with the aluminium housing and NBR gasket, this arrangement provides high levels of environmental protection when correctly assembled, making the CHI06LC suitable for industrial equipment exposed to dust, moisture and intensive cleaning conditions.
Typical Applications
- Industrial machinery and automation equipment.
- Electrical control cabinets and panels.
- Heavy-duty multipole connector installations.
- Manufacturing and production machinery.
- Material handling and conveyor systems.
- Power, control and signal connection interfaces.
