Why Choose the ILME CHI06LCS Bulkhead Housing with Metal Cover?

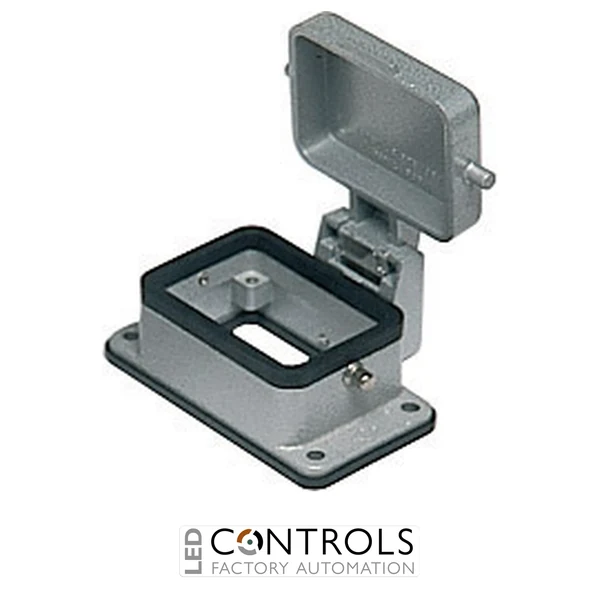

The ILME CHI06LCS, manufacturer designation CHI 06 LCS, is a robust bulkhead mounting housing for heavy-duty industrial connectors. Part of the ILME C-TYPE series, it is designed for size 44.27 connector inserts and features two locking pegs together with an integrated metal protection cover.
Designed for fixed mounting on control panels, machinery and industrial equipment, the CHI06LCS provides a secure interface for compatible ILME heavy-duty connector assemblies. The housing is supplied without a cable entry and incorporates an NBR sealing gasket, while the metal cover protects the connector interface when the mating connector is disconnected.
The CHI06LCS provides an IP65 degree of protection when correctly assembled in its intended configuration. Its RAL 7040 grey finish, compact size 44.27 format and wide operating temperature range of -40 °C to +125 °C make it suitable for machinery, factory automation and demanding industrial electrical installations.
Key Advantages
- Robust bulkhead mounting housing for heavy-duty industrial connectors.
- Two locking pegs provide secure engagement with compatible mating enclosures.
- Supplied with an integrated metal protection cover.
- Designed for ILME size 44.27 connector inserts.
- IP65 protection when correctly assembled in the intended configuration.
- NBR sealing gasket supports dependable environmental protection.
- Wide -40 °C to +125 °C operating temperature range for industrial environments.
Key Features
- ILME C-TYPE series enclosure.
- Bulkhead mounting configuration.
- Size 44.27 connector format.
- Two-peg locking arrangement.
- Supplied with metal cover.
- IP65 degree of protection.
- NBR gasket for environmental sealing.
- RAL 7040 grey finish.
- Designed without cable entry for fixed bulkhead installation.
- Individual component weight of approximately 122 g.
Reliable Bulkhead Connection with Integrated Interface Protection
Bulkhead connector housings provide a fixed connection point for detachable electrical interfaces on machinery, panels and industrial equipment. The ILME CHI06LCS combines this fixed mounting function with a metal cover, allowing the exposed connector interface to be protected whenever the mating hood or housing is removed.
The two integral locking pegs are designed to engage with the corresponding locking system of a compatible ILME enclosure. Together with the NBR gasket and metal cover, the CHI06LCS provides a practical solution for power, control and signal connector installations where both secure mating and protection of the disconnected interface are important.
Typical Applications
- Industrial machinery and automation equipment.
- Electrical control cabinets and panels.
- Heavy-duty multipole connector installations.
- Manufacturing and production machinery.
- Material handling and conveyor systems.
- Power, control and signal connection interfaces.
- Applications requiring protection of disconnected connector interfaces.
