Why Choose the Ilme CHI10CS Bulkhead Housing?

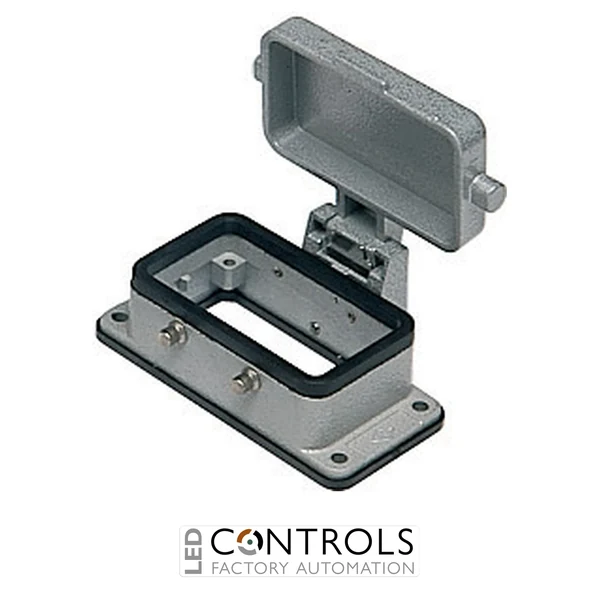

The Ilme CHI10CS is a robust C-TYPE bulkhead mounting connector housing with four pegs and a metal protective cover, designed for industrial multipole connector installations on machinery, control panels and electrical enclosures. With its 57.27 insert/base size, it provides a dependable panel-mounted interface for a wide range of compatible Ilme rectangular connector inserts.
Designed for demanding industrial environments, the CHI10CS combines an aluminium housing with a four-peg locking configuration for connection to compatible Ilme hoods equipped with closing levers. Its bulkhead mounting format allows the housing to be securely installed through an enclosure or machine panel, creating a convenient fixed connection point for power, control and signal circuits.
The integrated metal protective cover provides mechanical protection for the connector interface while it is disconnected. The CHI10CS is specified as an IP65 cover version; Ilme notes that the cover itself provides mechanical protection and does not independently guarantee the IP protection rating.
Key Advantages
- Robust bulkhead mounting housing for industrial multipole connectors.
- Four-peg configuration for compatible Ilme locking systems.
- Supplied with a durable metal protective cover.
- 57.27 size supports a wide range of compatible Ilme inserts.
- Aluminium construction suited to demanding industrial environments.
- Panel-mounted design provides a secure fixed connector interface.
Key Features
- Ilme C-TYPE industrial connector housing.
- Bulkhead / panel mounting configuration.
- 4 locking pegs.
- Metal protective cover for mechanical protection when disconnected.
- Size 57.27 connector format.
- IP65 cover version.
- No cable entry required in the bulkhead housing.
- Compatible with appropriate Ilme 57.27 inserts and mating connector hoods.
Reliable Industrial Connector Protection
Bulkhead housings provide a fixed mounting point for heavy-duty multipole connectors installed through machine panels and electrical enclosures. This arrangement allows power, control and signal connections to be quickly connected or disconnected while keeping the panel-side connector securely mounted.
The CHI10CS combines Ilme's established C-TYPE housing system with a metal cover that protects the connector mechanically when not in use. Its 57.27 format supports compatible Ilme insert families, making the housing suitable for flexible industrial connector configurations across machinery and automation applications.
Typical Applications
- Industrial machinery and automation equipment.
- Electrical control panels and switchgear.
- Machine tools and production equipment.
- Factory automation and manufacturing lines.
- Power, control and signal connector systems.
- OEM machinery and panel-building applications.
