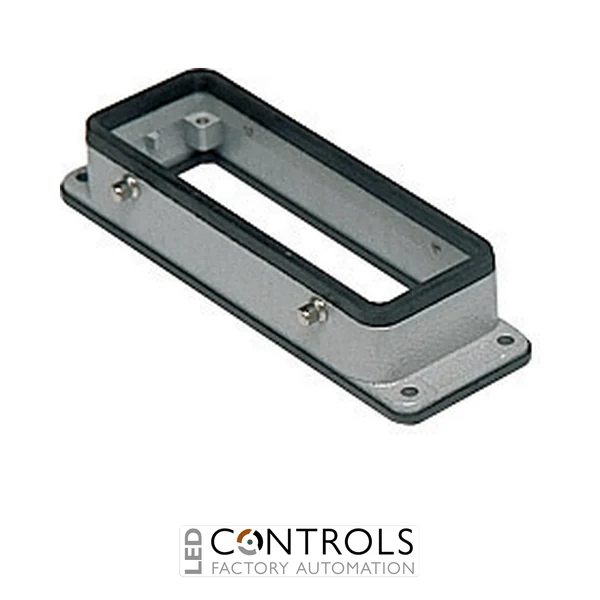

Why Choose the Ilme CHI24C Bulkhead Housing?
The Ilme CHI24C is a robust bulkhead housing with four pegs designed for heavy-duty multipole connector installations in industrial machinery, automation and electrical equipment. Manufactured for size 104.27 connector inserts, it provides a durable panel-mounted interface for creating secure and serviceable electrical connections through control cabinets, machine panels and industrial enclosures.
The CHI24C features a strong die-cast aluminium alloy construction engineered for demanding industrial environments. Its four-peg arrangement is designed to engage with the two locking levers of a compatible Ilme hood or cover, providing secure mechanical coupling while allowing straightforward connection and disconnection during installation, maintenance and equipment changeovers.
With its size 104.27 format and bulkhead-mounted configuration, the CHI24C is particularly suitable for larger heavy-duty connector assemblies carrying power, control and signal circuits. When correctly assembled with compatible Ilme inserts and mating enclosures, it provides dependable connector protection for industrial automation and machine-building applications.
Key Advantages
- Robust bulkhead housing for heavy-duty industrial connectors.
- Four-peg locking arrangement for compatible double-lever hoods and covers.
- Designed for size 104.27 connector inserts.
- Durable die-cast aluminium alloy construction for industrial service.
- Bulkhead format enables straightforward installation on panels, cabinets and machine enclosures.
- Suitable for modular power, signal and control connections in industrial automation systems.
Key Features
- Ilme heavy-duty connector housing.
- Size 104.27 connector enclosure format.
- Four locking pegs for mating with compatible two-lever components.
- Bulkhead / panel mounting configuration.
- Robust die-cast aluminium alloy body.
- Designed for compatible 104 × 27 mm connector inserts.
- Suitable for repeated connection and disconnection in industrial installations.
- Designed for integration into electrical control panels and machinery enclosures.
Reliable Bulkhead Connectivity for Industrial Machinery
Bulkhead housings such as the Ilme CHI24C provide a secure mounting point where electrical connections need to pass through a control cabinet, machine panel or enclosure wall. The housing supports the connector insert while providing the mechanical interface required to couple a compatible hood, helping create a robust and maintainable connection between fixed and removable equipment.
The four-peg arrangement allows compatible two-lever mating enclosures to be securely locked on both sides of the connector assembly. This makes the CHI24C particularly suitable for larger multipole connections used in modular machinery and industrial automation systems where reliable mechanical retention and convenient maintenance access are important.
Typical Applications
- Industrial control panels and electrical cabinets.
- Machine building and OEM automation systems.
- Manufacturing and production machinery.
- Conveyor and material handling equipment.
- Heavy-duty multipole connector assemblies.
- Industrial power, signal and control connections.
