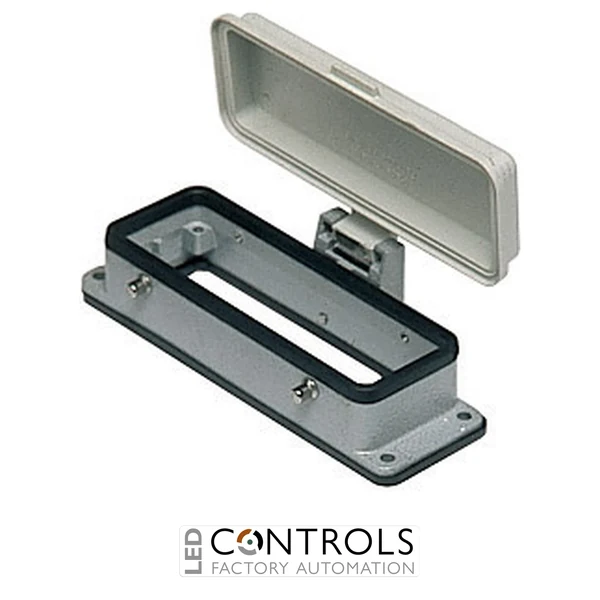

Why Choose the Ilme CHI24CP Bulkhead Housing with Plastic Cover?
The Ilme CHI24CP is a robust bulkhead mounting housing with four pegs and a plastic protective cover designed for heavy-duty industrial connector installations. As part of the proven Ilme C-TYPE series, it is manufactured for size 104.27 connector inserts and provides a durable fixed interface for electrical connections through control panels, cabinets and machine enclosures.
The CHI24CP combines a strong aluminium housing with a four-peg locking arrangement designed to engage with compatible two-lever Ilme hoods. The supplied plastic cover protects the connector interface when the mating connector is disconnected, while the integrated NBR gasket supports effective environmental sealing in demanding industrial applications.
With an IP65 degree of protection, an operating temperature range of -40 °C to +125 °C and a size 104.27 format, the CHI24CP is well suited to machinery, automation systems and industrial control equipment. Its bulkhead design has no cable entry because it is intended for direct installation onto a panel or enclosure wall.
Key Advantages
- Robust C-TYPE bulkhead housing for heavy-duty industrial connectors.
- Four-peg locking arrangement for compatible two-lever mating hoods.
- Supplied with a plastic protective cover for the connector interface.
- IP65 protection rating for demanding industrial environments.
- Integrated NBR gasket supports reliable environmental sealing.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- Ilme C-TYPE series.
- Size 104.27 connector enclosure format.
- Four locking pegs for secure mating with compatible components.
- Supplied with plastic protective cover.
- Bulkhead / panel mounting configuration without cable entry.
- IP65 degree of protection.
- NBR sealing gasket.
- RAL 7040 grey finish.
Reliable Bulkhead Connectivity with Connector Protection
Bulkhead housings such as the Ilme CHI24CP provide a secure fixed mounting point where heavy-duty electrical connections pass through a control cabinet, machine panel or enclosure wall. The housing supports the connector insert while its four pegs provide the mechanical interface required for secure coupling with a compatible two-lever hood.
The supplied plastic cover helps protect the connector interface whenever the mating connector is removed, reducing exposure to dust, moisture and industrial contaminants. This combination makes the CHI24CP particularly useful for modular machinery and automation systems where connectors may be routinely disconnected for servicing, transportation or equipment changeovers.
Typical Applications
- Industrial control panels and electrical cabinets.
- Machine building and OEM automation systems.
- Manufacturing and production machinery.
- Conveyor and material handling equipment.
- Heavy-duty multipole connector assemblies.
- Industrial power, signal and control connections.
