Why Choose the Ilme CHI24YC Bulkhead Housing?

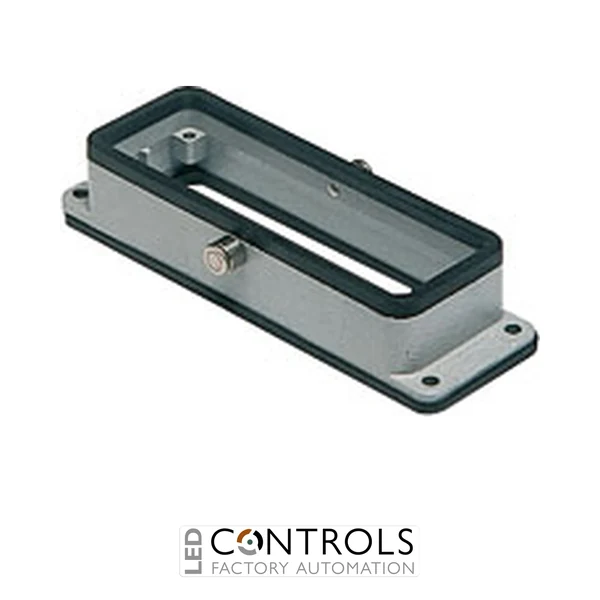

The Ilme CHI24YC is a robust CENTRAL LEVER series bulkhead mounting connector housing with two pegs, designed for heavy-duty multipole connector installations in industrial machinery, automation systems and electrical control equipment. With its 104.27 size, it provides a secure fixed mounting point for compatible Ilme rectangular connector inserts and central-lever mating enclosures.
The CHI24YC uses Ilme's central locking system, with two pegs on the bulkhead housing designed to engage with a compatible central lever on the mating connector enclosure. This arrangement provides straightforward connection and disconnection while maintaining secure mechanical retention in demanding industrial applications.
Designed without a cable entry for direct bulkhead or panel installation, the CHI24YC offers IP65 / IP66 / IP69 protection when correctly assembled with compatible components. Its rugged construction, NBR gasket and wide -40 to +125 °C operating temperature range make it suitable for machinery and industrial environments where dependable connector protection is essential.
Key Advantages
- Heavy-duty bulkhead mounting connector housing for industrial applications.
- Central locking system with two pegs for compatible central-lever enclosures.
- 104.27 size supports compatible Ilme multipole and modular connector inserts.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
- Wide -40 to +125 °C operating temperature range.
- Fixed panel-mounted format requires no cable entry in the housing.
Key Features
- Ilme CENTRAL LEVER series.
- Bulkhead / panel mounting configuration.
- 2 locking pegs.
- Designed for a central-lever locking arrangement.
- Size 104.27 connector format.
- IP65 / IP66 / IP69 degree of protection.
- NBR gasket.
- RAL 7040 grey finish.
- No cable entry required.
- Compatible with appropriate Ilme 104.27 connector inserts.
Secure Central-Lever Industrial Connectivity
Central-lever connector systems provide a convenient method of securing heavy-duty multipole connectors while simplifying connection and disconnection during installation and maintenance. The two pegs on the CHI24YC engage with the central locking mechanism of a compatible mating enclosure, helping provide even and dependable mechanical retention.
The bulkhead mounting format makes the CHI24YC particularly suitable for fixed connector interfaces on control cabinets, machines and production equipment. Its 104.27 format can accommodate compatible Ilme inserts selected according to the required power, control or signal connection configuration.
Typical Applications
- Industrial machinery and automation equipment.
- Electrical control panels and switchgear assemblies.
- Machine tools and production equipment.
- Manufacturing and material handling systems.
- Industrial power, control and signal connections.
- OEM machinery and panel-building applications.
