Why Choose the ILME CHI32L Bulkhead Mounting Housing?

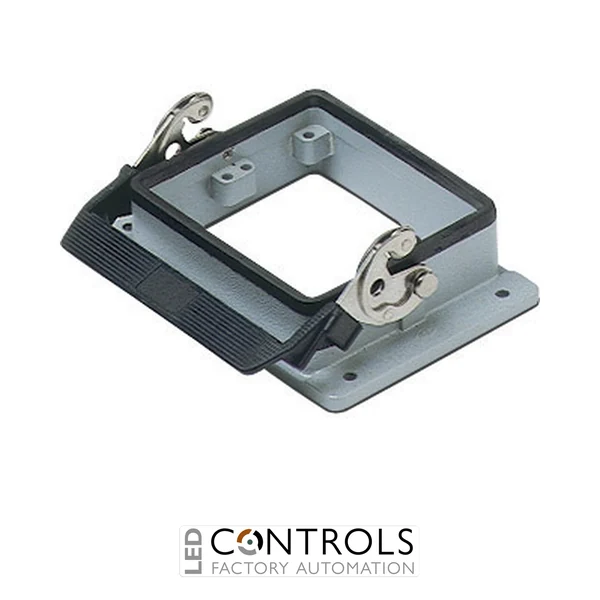

The ILME CHI32L, manufacturer reference CHI 32 L, is a heavy-duty bulkhead mounting housing with one locking lever designed for compatible ILME rectangular connector inserts and hoods in the 77.62 size format. Part of the ILME C-TYPE series, it provides a robust fixed connector interface for industrial machinery, automation systems and electrical control equipment.
The CHI32L uses a durable die-cast aluminium housing with a single locking lever for secure engagement with a compatible hood equipped with two locking pegs. Its bulkhead design mounts directly to a panel or equipment surface and is supplied without a cable entry, making it suitable for fixed equipment-side connector installations.
An NBR sealing gasket supports environmental protection when the connector system is correctly assembled and locked. With its large 77.62 format and rugged C-TYPE construction, the CHI32L provides a dependable enclosure solution for applications requiring high-density or multi-insert heavy-duty connections.
Key Advantages
- Heavy-duty bulkhead mounting housing for fixed industrial connector interfaces.
- Designed for compatible ILME connector systems in size 77.62.
- Single locking lever provides quick and secure connector closure.
- Durable die-cast aluminium construction for demanding industrial environments.
- NBR gasket supports environmental sealing of the correctly assembled connector system.
- Panel-mounting design requires no cable entry in the housing.
- Suitable for repeated connection and disconnection in machinery and automation applications.
Key Features
- ILME C-TYPE series heavy-duty connector enclosure.
- 77.62 multipole size.
- Bulkhead / panel mounting configuration.
- One-lever locking system.
- Designed to engage compatible hoods with two locking pegs.
- Die-cast aluminium enclosure.
- NBR sealing gasket.
- Supplied without cable entry.
- Designed for compatible double-size ILME connector inserts.
Robust Panel-Mounted Connectivity for Industrial Equipment
Bulkhead housings create a fixed connection point between machinery or control equipment and removable cables or wiring assemblies. The ILME CHI32L is designed for the larger 77.62 connector format, allowing compatible ILME inserts to be securely mounted within a rugged enclosure while maintaining straightforward access for installation and servicing.
The single-lever mechanism enables a compatible two-peg hood to be quickly secured to or released from the housing. This combination of robust aluminium construction, gasket sealing and convenient lever operation makes the CHI32L well suited to industrial installations where connectors are routinely mated and unmated.
Typical Applications
- Industrial machinery and factory automation.
- Control panels and electrical cabinets.
- Bulkhead-mounted heavy-duty connector interfaces.
- Manufacturing and production equipment.
- Material handling and conveyor systems.
- Machine tools and process equipment.
- Multi-insert industrial connector assemblies.
