Why Choose the ILME CHIN06L LS-TYPE Bulkhead Housing?

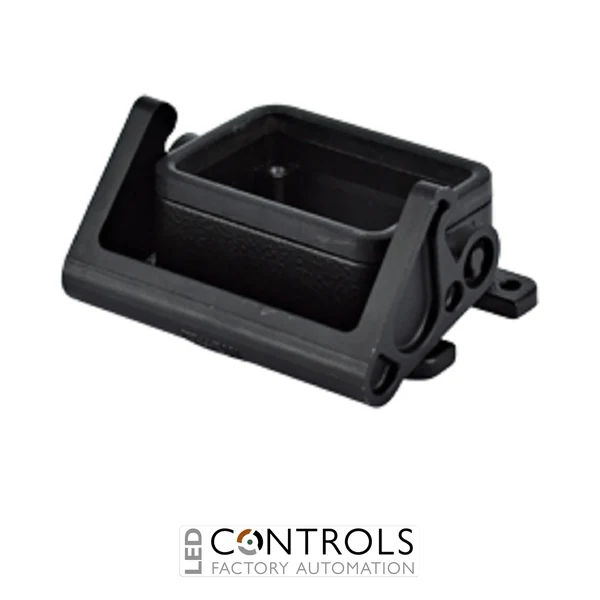

The ILME CHIN06L, manufacturer part number CHIN 06 L, is a heavy-duty bulkhead mounting housing with one locking lever for industrial rectangular connectors. Part of the specialised ILME LS-TYPE series, it is designed for size 44.27 connector inserts and provides a secure fixed mounting interface for compatible ILME connector systems.
The CHIN06L is an aluminium LS-TYPE enclosure designed for bulkhead installation and is supplied without a cable entry. Its single black polyamide locking lever provides straightforward and secure engagement with compatible mating hoods, while the compact size 44.27 format makes it suitable for machinery, control panels and equipment where reliable detachable connections are required.
The housing provides an IP65 degree of protection when correctly assembled with compatible components and operates across a wide temperature range from -40 °C to +125 °C. An NBR sealing gasket and durable LS-TYPE construction support dependable service in industrial environments.
Key Advantages
- Heavy-duty LS-TYPE bulkhead mounting housing for industrial connector installations.
- Designed for size 44.27 ILME rectangular connector inserts.
- Single locking lever provides quick and secure connector engagement.
- IP65 protection when correctly assembled with compatible connector components.
- Wide operating temperature range from -40 °C to +125 °C.
- Compact fixed-mounting solution for machinery, panels and industrial equipment.
Key Features
- ILME LS-TYPE series.
- Size 44.27 enclosure format.
- Bulkhead mounting housing configuration.
- One-lever locking system.
- Aluminium LS-TYPE enclosure construction.
- Polyamide (PA) locking lever.
- Without cable entry for fixed bulkhead installation.
- NBR sealing gasket.
- RAL 9005 black finish.
- IP65 degree of protection.
- Operating temperature range from -40 °C to +125 °C.
Reliable LS-TYPE Connectivity for Industrial Equipment
ILME LS-TYPE enclosures are designed to provide robust heavy-duty connector interfaces with a distinctive black finish and practical locking arrangement. The CHIN06L forms the fixed bulkhead side of a compatible LS-TYPE connection, using its single locking lever to secure the mating connector while the NBR gasket supports environmental sealing.
The size 44.27 format accommodates a range of compatible ILME inserts for power, control and signal applications, including suitable CDD, CQE, CSH, CCE, CNE, CSE, CSS and MIXO configurations. This flexibility makes the CHIN06L suitable for numerous industrial systems requiring a compact, detachable and securely locked electrical interface.
Typical Applications
- Industrial machinery and automation equipment.
- Control cabinets and electrical panels.
- Stage and entertainment equipment connections.
- Manufacturing and production machinery.
- Heavy-duty power, control and signal connector assemblies.
- Fixed equipment interfaces requiring compact single-lever locking.
