Why Choose the ILME CHIW10 W-TYPE Bulkhead Housing?

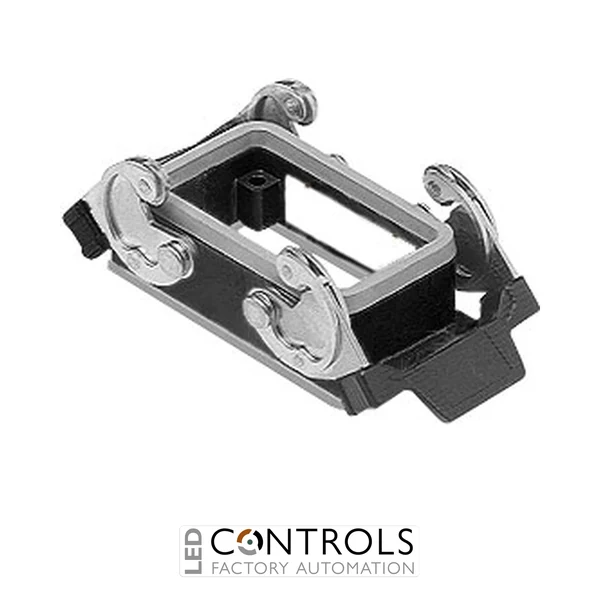

The ILME CHIW10, manufacturer part number CHIW 10, is a heavy-duty bulkhead mounting housing with two locking levers for industrial rectangular connectors. Part of the ILME W-TYPE series, it is designed for size 57.27 connector systems and provides a robust fixed mounting interface for compatible ILME inserts and mating hoods.
The W-TYPE range is designed for applications requiring enhanced resistance to aggressive industrial environments. The CHIW10 is intended for fixed bulkhead or panel mounting and is supplied without a cable entry. Its two-lever locking arrangement provides secure mechanical engagement with compatible mating hoods equipped with four locking pegs.
When correctly assembled with compatible ILME components, the CHIW10 supports IP65 / IP66 / IP69 protection. Its W-TYPE construction makes it particularly suitable for industrial machinery, automation, processing equipment and installations where environmental resistance and dependable connector retention are important.
Key Advantages
- Heavy-duty W-TYPE bulkhead mounting housing for demanding industrial applications.
- Designed for size 57.27 ILME rectangular connector systems.
- Two locking levers provide secure engagement with compatible four-peg mating hoods.
- IP65 / IP66 / IP69 protection capability when correctly assembled with compatible components.
- W-TYPE construction is designed for aggressive industrial environments.
- Fixed bulkhead mounting provides a robust connection point for machinery, panels and electrical equipment.
Key Features
- ILME W-TYPE series.
- Size 57.27 enclosure format.
- Bulkhead mounting housing configuration.
- Two-lever locking system.
- Designed for compatible mating hoods with 4 locking pegs.
- Without cable entry for fixed bulkhead installation.
- W-TYPE construction for enhanced environmental resistance.
- IP65 / IP66 / IP69 degree of protection with compatible components.
- Suitable for power, control, signal and mixed industrial connector configurations.
- Designed for machinery, automation and demanding industrial installations.
Reliable W-TYPE Connectivity for Demanding Environments
ILME W-TYPE enclosures are intended for heavy-duty connector applications where increased resistance to environmental and industrial exposure is required. The CHIW10 forms the fixed bulkhead side of a compatible size 57.27 connection, providing a secure mounting point while its two locking levers retain the corresponding mating hood.
The size 57.27 enclosure format supports compatible ILME inserts for power, control, signal and mixed-service applications. Combined with the W-TYPE enclosure system's environmental protection and secure two-lever locking arrangement, the CHIW10 provides a dependable solution for machinery and equipment operating in challenging industrial conditions.
Typical Applications
- Industrial machinery and automation equipment.
- Manufacturing and processing machinery.
- Control cabinets and electrical panels.
- Outdoor and environmentally demanding industrial equipment.
- Heavy-duty power, control and signal connector assemblies.
- Fixed equipment interfaces requiring secure two-lever connector locking.
