Why Choose the Ilme CHIW16 W-TYPE Bulkhead Housing?

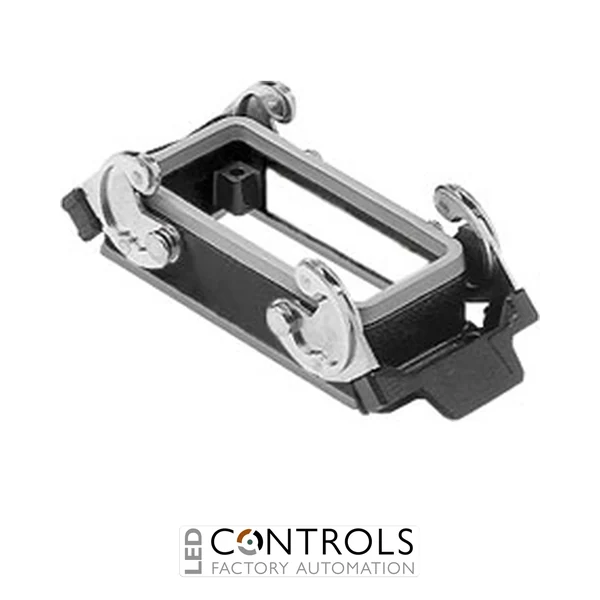

The Ilme CHIW16 is a robust bulkhead mounting housing with two locking levers designed for heavy-duty industrial connector systems used in harsh and aggressive environments. As part of the specialised Ilme W-TYPE enclosure range, it is manufactured for size 77.27 connector systems and provides a dependable fixed connection interface for machinery, automation equipment and electrical installations.
The CHIW16 combines durable metal enclosure construction with two locking levers for secure mating with compatible Ilme hoods and connector components. W-TYPE enclosures are developed for applications requiring enhanced resistance to challenging environmental conditions, making them particularly suitable for exposed machinery and installations where conventional connector housings may experience accelerated corrosion or environmental wear.
With IP65 / IP66 / IP69 protection when correctly assembled with compatible components and a compact size 77.27 format, the CHIW16 provides a reliable bulkhead connection point for heavy-duty multipole connector systems. Its panel-mounted configuration has no cable entry and is designed for direct installation onto control cabinets, electrical panels and machine enclosures.
Key Advantages
- Heavy-duty W-TYPE bulkhead housing for demanding industrial environments.
- Two locking levers provide secure and convenient connector coupling.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
- Designed specifically for size 77.27 heavy-duty connector systems.
- Bulkhead configuration enables straightforward mounting to panels, cabinets and machinery.
- W-TYPE construction is suitable for applications requiring enhanced environmental durability.
Key Features
- Ilme W-TYPE enclosure range.
- Size 77.27 connector enclosure format.
- Two locking levers for secure mating with compatible connector components.
- Bulkhead / panel mounting configuration.
- Without cable entry for direct panel installation.
- IP65 / IP66 / IP69 degree of protection when correctly assembled.
- Designed for compatible 77 × 27 mm connector inserts.
- Suitable for heavy-duty power, signal and control connector assemblies.
Reliable Bulkhead Connectivity for Harsh Industrial Environments
Bulkhead housings such as the Ilme CHIW16 provide a secure fixed mounting point where heavy-duty electrical connections pass through a control cabinet, machine panel or enclosure wall. The housing supports a compatible connector insert while its two locking levers provide the mechanical interface required to securely couple the mating hood.
The W-TYPE enclosure range is intended for demanding industrial applications where enhanced resistance to environmental conditions is important. Combined with the CHIW16's secure twin-lever locking arrangement and high ingress-protection capability, this makes it a practical solution for machine builders and automation engineers requiring robust, maintainable connector interfaces.
Typical Applications
- Industrial machinery operating in harsh environments.
- Automation systems and production equipment.
- Industrial control panels and electrical cabinets.
- Manufacturing and processing machinery.
- Heavy-duty multipole connector assemblies.
- OEM equipment requiring enhanced environmental protection.
