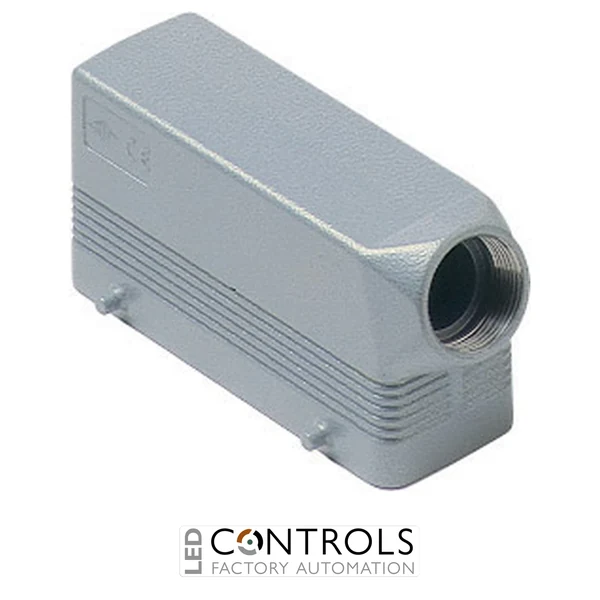

Why Choose the ILME CHO24 Hood?
The ILME CHO24 is a durable industrial multipole connector hood designed to protect compatible rectangular connector inserts used in machinery, automation and electrical installations. Part of the established ILME C-TYPE enclosure series, it provides a robust enclosure solution for detachable power, control and signal connections in demanding industrial environments.
The CHO24 features four locking pegs for secure mating with compatible ILME housings and a Pg21 side cable entry that allows convenient horizontal cable routing. Its large size 104.27 format supports compatible ILME connector inserts and is particularly suitable for applications requiring a substantial number of electrical contacts within a single industrial connector assembly.
With protection ratings of IP65 / IP66 / IP69 when correctly assembled with compatible components, the CHO24 provides excellent resistance to dust and water ingress. Its die-cast aluminium construction, epoxy-coated finish and wide -40 °C to +125 °C operating temperature range make it suitable for demanding industrial machinery and automation environments.
Key Advantages
- Robust industrial connector hood for multipole electrical connections.
- Size 104.27 format for compatible large ILME connector inserts.
- Four locking pegs provide secure mating with compatible lever-equipped housings.
- Pg21 side cable entry supports convenient horizontal cable routing.
- High environmental protection of IP65 / IP66 / IP69 when correctly assembled.
- Durable die-cast aluminium construction with an epoxy-coated finish.
Key Features
- ILME C-TYPE enclosure series.
- Size 104.27 connector hood.
- Four locking pegs.
- Pg21 side cable entry.
- Die-cast aluminium enclosure construction.
- Epoxy-coated surface for industrial durability.
- RAL 7040 grey finish.
- Wide -40 °C to +125 °C operating temperature range.
- Suitable for industrial power, control and signal connections.
Reliable Protection for Industrial Connections
Industrial connector hoods such as the ILME CHO24 provide mechanical and environmental protection for connector inserts, contacts and cable terminations. The side-entry configuration allows the connected cable to approach horizontally, making it particularly useful where enclosure dimensions or installation layouts restrict the use of top-entry connector hoods.
The ILME C-TYPE series is engineered for dependable industrial connectivity in machinery and automation systems. The CHO24 combines a large size 104.27 enclosure, four locking pegs and a Pg21 side entry to create a robust and maintainable connection point for power, signal and control circuits.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical panels and machine enclosures.
- Conveyor and material handling equipment.
- Motor, power and control connections.
- Manufacturing and process automation machinery.
