Why Choose the Ilme CHP24CP Surface Housing?

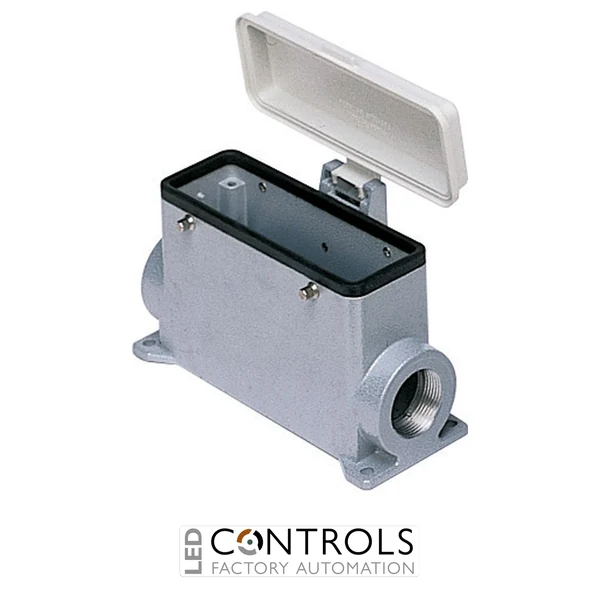

The Ilme CHP24CP is a heavy-duty surface-mount industrial connector housing with four locking pegs, a plastic protective cover and PG21 cable entry. Its 104.27 size makes it suitable for compatible Ilme multipole inserts used for detachable power, control and signal connections in machinery, automation equipment and electrical installations.
Designed for direct mounting onto machinery, panels and electrical enclosures, the CHP24CP provides a fixed connector interface while allowing the installation cable to enter through the housing. The PG21 cable entry accommodates a suitable cable gland or sealing accessory, while the four pegs engage compatible lever-equipped Ilme hoods for secure mechanical locking.
An integrated plastic protective cover helps shield the connector interface from contamination and accidental contact while the mating connector is disconnected. This combination of surface mounting, protective cover and robust locking makes the CHP24CP a practical solution for industrial equipment requiring reliable and serviceable multipole connections.
Key Advantages
- Heavy-duty surface-mount connector housing for industrial applications.
- Four locking pegs provide secure mating with compatible lever-equipped Ilme hoods.
- Supplied with a plastic protective cover for the unmated connector interface.
- PG21 cable entry for a suitable cable gland or sealing accessory.
- 104.27 size supports compatible Ilme rectangular connector inserts.
- Provides a maintainable detachable interface for industrial power, control and signal wiring.
Key Features
- Ilme heavy-duty industrial connector housing.
- Surface mounting configuration.
- 4 locking pegs.
- Plastic protective cover.
- Size 104.27 connector format.
- PG21 cable entry.
- Designed for compatible Ilme 104.27 multipole inserts.
- Suitable for fixed machine, panel and enclosure installations.
- Supports detachable power, control and signal connector applications.
Protected Surface-Mounted Industrial Connectivity
Surface housings provide a convenient fixed connection point on machinery and electrical enclosures while incorporating the cable entry into the connector housing. This arrangement is particularly useful where groups of conductors need to be disconnected as a single assembly during machine installation, commissioning, maintenance or replacement.
The CHP24CP combines the larger 104.27 connector format with a four-peg locking arrangement and PG21 cable entry. Its protective plastic cover helps keep the connector interface protected while unmated, making the housing well suited to industrial installations where equipment sections may be connected and disconnected periodically.
Typical Applications
- Industrial machinery and automation equipment.
- Electrical control panels and equipment enclosures.
- Machine tools and production machinery.
- Factory automation and manufacturing systems.
- Material handling and conveyor equipment.
- Industrial power, control and signal connections.
- OEM machinery and panel-building applications.
