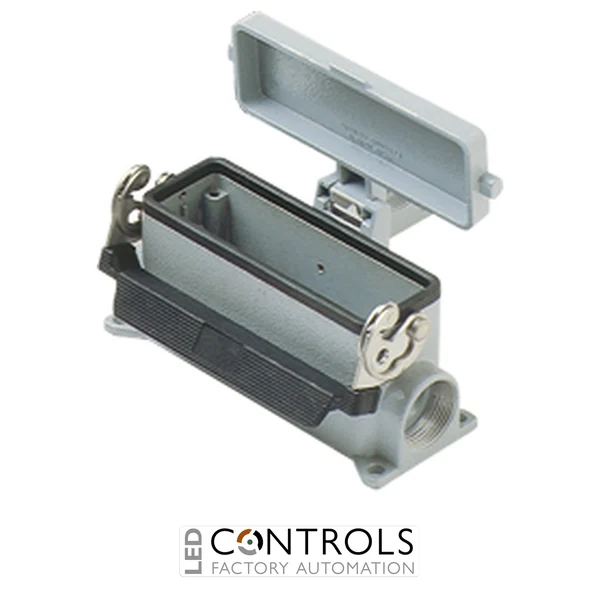

Why Choose the Ilme CHP24LS2 Surface Mounting Housing?
The Ilme CHP24LS2 is a robust surface mounting housing for industrial multipole connectors, designed to provide a secure fixed connection point for machinery, automation and industrial electrical installations. Part of the Ilme C-TYPE series, it combines a size 104.27 enclosure with a single locking lever, twin cable entries and a protective metal cover.
The CHP24LS2 features two Pg21 cable entries, providing flexible cable routing into the connector assembly where multiple cable paths or installation requirements need to be accommodated. Its single locking lever securely couples the housing with compatible Ilme connector components, while the supplied metal cover protects the connector interface when it is not connected.
With an IP65 protection rating, rugged industrial construction and an operating temperature range of -40 °C to +125 °C, the CHP24LS2 is designed for dependable service in demanding environments. Its surface-mounted format makes it suitable for installation on machinery, equipment enclosures and fixed electrical assemblies requiring durable and serviceable multipole connections.
Key Advantages
- Robust surface mounting housing for heavy-duty multipole connectors.
- Single locking lever provides secure and convenient connector coupling.
- Two Pg21 cable entries provide flexible cable routing into the housing.
- Supplied with a durable metal protective cover for the connector interface.
- IP65 protection when correctly assembled for demanding industrial environments.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- Ilme C-TYPE series.
- Size 104.27 connector housing.
- One locking lever.
- 2 × Pg21 cable entries.
- Supplied with metal cover.
- IP65 degree of protection.
- Lever manufactured from stainless steel and polyamide (PA).
- NBR gasket supports effective environmental sealing.
- RAL 7040 grey finish.
- Suitable for operating temperatures from -40 °C to +125 °C.
Reliable Connector Protection for Industrial Installations
Surface mounting housings provide a fixed and protected termination point for heavy-duty multipole connector systems. The Ilme CHP24LS2 allows compatible inserts and electrical terminations to be securely enclosed while retaining the convenience of a detachable connection for installation, servicing and equipment maintenance.
Its two Pg21 entries provide additional cable-routing flexibility, while the single-lever locking arrangement enables straightforward connection and disconnection. When the mating connector is removed, the metal cover protects the interface from contamination and mechanical contact, helping maintain dependable connections throughout the service life of industrial machinery and equipment.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Machine-to-equipment electrical interfaces.
- Motor, actuator and control connections.
- Conveyor and material handling equipment.
- Robotics and automated manufacturing systems.
