Why Choose the Ilme CHP48LS Surface Mounting Housing?

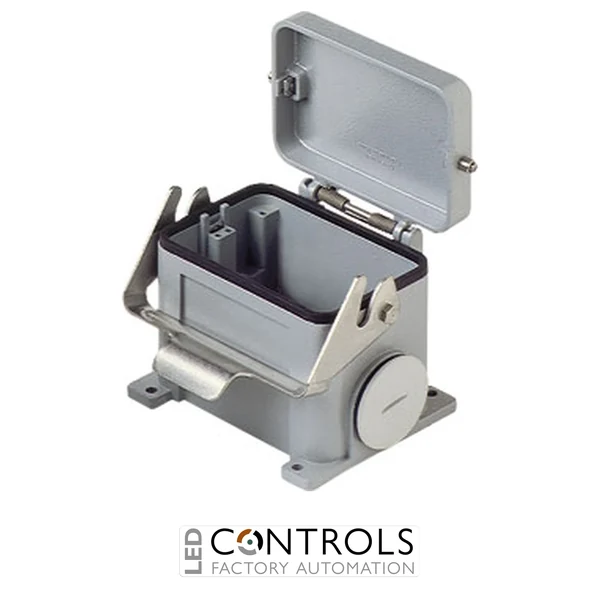

The Ilme CHP48LS is a heavy-duty surface mounting housing for industrial multipole connectors, designed to provide a secure fixed connection point for machinery, automation and industrial electrical installations. Part of the Ilme C-TYPE series, it combines a large size 104.62 enclosure format with a single locking lever, twin Pg36 cable entries and a protective metal cover.
The CHP48LS features two Pg36 side cable entries, providing flexible routing for cables entering the connector assembly. Its single-lever closing arrangement provides secure coupling with compatible Ilme connector components, while the integrated metal cover protects the connector interface when the mating connector is disconnected.
With an IP65 protection rating, robust aluminium construction and an operating temperature range of -40 °C to +125 °C, the CHP48LS is engineered for dependable use in demanding industrial environments. The size 104.62 format is also associated with compatible 48-pole-plus-earth connector configurations, making this housing particularly suitable for high-density power, control and signal connections.
Key Advantages
- Heavy-duty surface mounting housing for industrial multipole connectors.
- Single locking lever enables secure and convenient connector coupling.
- Two Pg36 cable entries provide flexible cable-routing options.
- Supplied with a robust metal protective cover for the connector interface.
- IP65 protection when correctly assembled for demanding industrial environments.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- Ilme C-TYPE series.
- Size 104.62 enclosure format.
- Surface mounting configuration.
- One locking lever.
- 2 × Pg36 side cable entries.
- Supplied with metal cover.
- Aluminium housing for heavy-duty industrial installations.
- IP65 degree of protection.
- RAL 7040 grey finish.
- Operating temperature range from -40 °C to +125 °C.
Reliable Connector Protection for Industrial Installations
Surface mounting housings form the fixed side of heavy-duty multipole connector systems, providing mechanical and environmental protection for inserts and electrical terminations while allowing machinery and equipment to be connected and disconnected efficiently. The Ilme CHP48LS provides this functionality in a large size 104.62 enclosure suitable for demanding industrial connectivity requirements.
Its twin Pg36 side entries provide flexibility when routing cables into the housing, while the single-lever locking system enables straightforward connection to compatible Ilme components. When disconnected, the metal cover protects the connector interface from contamination and mechanical contact, helping maintain reliable electrical connections throughout the service life of machinery and production equipment.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- High-density machine electrical interfaces.
- Power, signal and control connections.
- Conveyor and material handling systems.
- Robotics and automated manufacturing equipment.
