Why Choose the Ilme CHP50CS Surface Housing?

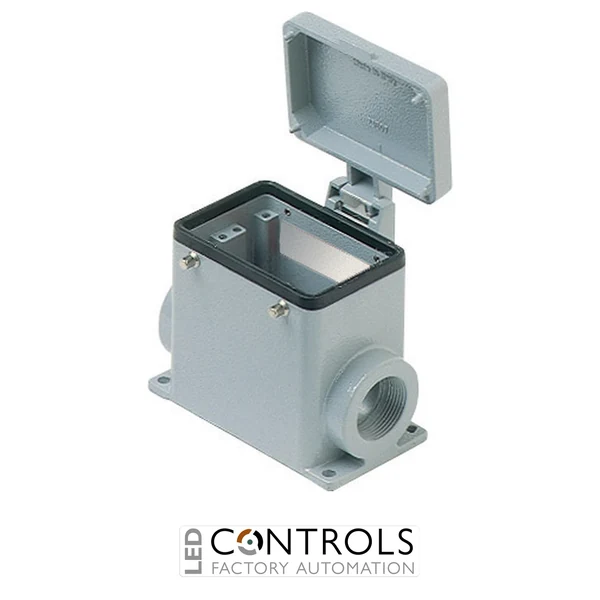

The Ilme CHP50CS is a robust C-TYPE surface-mount industrial connector housing with four locking pegs, a metal protective cover and PG21 cable entry. Its 66.40 size provides a durable fixed enclosure for compatible Ilme multipole connector inserts used in machinery, automation equipment and industrial electrical systems.
Manufactured from aluminium, the CHP50CS is designed for direct surface installation on machinery, panels and electrical enclosures. The single PG21 cable entry provides a route for incoming wiring through a suitable cable gland, while the four locking pegs are designed to engage compatible Ilme hoods equipped with locking levers.
The supplied metal protective cover helps protect the connector interface while the mating assembly is disconnected. The housing provides IP65 protection when correctly assembled and is designed for an operating temperature range of -40 to +125 °C, making it suitable for demanding industrial environments.
Key Advantages
- Heavy-duty C-TYPE surface-mount connector housing.
- Four locking pegs for secure mating with compatible lever-equipped Ilme hoods.
- Supplied with a robust metal protective cover.
- PG21 cable entry for a suitable industrial cable gland.
- 66.40 size for compatible Ilme multipole connector inserts.
- IP65 protection when correctly assembled.
- Durable aluminium construction for industrial environments.
Key Features
- Ilme C-TYPE industrial connector housing.
- Surface mounting configuration.
- 4 locking pegs.
- Metal protective cover.
- Size 66.40 connector format.
- 1 × PG21 cable entry.
- Aluminium housing.
- IP65 degree of protection when correctly assembled.
- Operating temperature range of -40 to +125 °C.
- NBR gasket.
- RAL 7040 grey finish.
- RoHS compliant.
Protected Surface-Mounted Industrial Connectivity
Surface connector housings provide a fixed multipole connection point directly on machinery and electrical enclosures while allowing installation wiring to enter through the housing. This configuration enables multiple power, control or signal conductors to be connected and disconnected together, simplifying equipment installation, servicing and replacement.
The CHP50CS combines the 66.40 enclosure format with four locking pegs, a PG21 cable entry and a metal cover. When assembled with a compatible Ilme insert, mating hood and appropriate cable gland, it provides a secure and maintainable industrial connector interface with IP65 environmental protection.
Typical Applications
- Industrial machinery and automation equipment.
- Electrical control panels and equipment enclosures.
- Machine tools and production machinery.
- Factory automation and manufacturing systems.
- Material handling and conveyor equipment.
- Industrial power, control and signal connections.
- OEM machinery and modular equipment installations.
