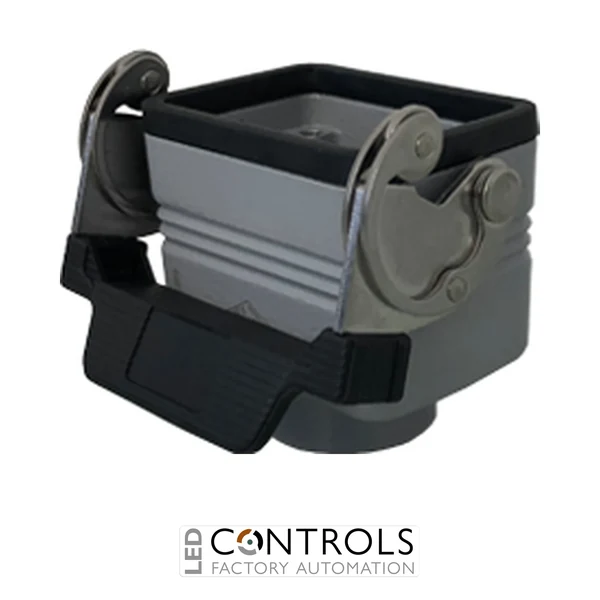

CHV06LG Ilme Hood 1 lever and gasket top entry PG16 Size 44.27

CHV06LG Ilme Hood 1 lever and gasket top entry PG16 Size 44.27

ILME CHV06LG is a C-TYPE size 44.27 industrial connector hood with one locking lever, gasket, Pg16 top cable entry and IP65 / IP66 / IP69 protection.

SKU: CHV06LGAlt SKU: CHV 06 LGMPN: CHV06LG
Price
List Price £18.03 ex VAT
Your Price (ex VAT)
£18.03
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £18.03
Trade pricing is personalised to your account

Manufacturer Lead Time

£18.03

Why Choose the ILME CHV06LG Hood?

The ILME CHV06LG is a robust industrial connector hood designed for compatible rectangular multipole connector inserts used in machinery, automation and electrical installations. Part of the established ILME C-TYPE enclosure series, it combines a compact size 44.27 format with durable construction for dependable industrial connectivity.

The CHV06LG features one locking lever for secure mechanical mating with a compatible ILME enclosure component. Its gasketed construction supports effective sealing of the connector assembly, helping provide dependable protection for electrical connections in demanding industrial environments.

A Pg16 top cable entry provides direct cable routing into the hood while maintaining a compact installation footprint. When correctly assembled with compatible components, the CHV06LG provides IP65 / IP66 / IP69 protection, making it a versatile enclosure solution for industrial power, control and signal connections.

Key Advantages

  • Robust C-TYPE hood for industrial multipole connectors.
  • Compact size 44.27 configuration.
  • Single locking lever provides secure mating with compatible ILME enclosure components.
  • Pg16 top cable entry supports direct and space-efficient cable routing.
  • Gasketed construction supports effective sealing of the connector assembly.
  • High environmental protection of IP65 / IP66 / IP69 when correctly assembled.

Key Features

  • ILME C-TYPE enclosure series.
  • Size 44.27 connector hood.
  • One locking lever.
  • Pg16 top cable entry.
  • Gasketed connector enclosure construction.
  • IP65 / IP66 / IP69 ingress protection when correctly assembled.
  • Designed for compatible ILME rectangular multipole connector inserts.
  • Suitable for industrial power, control and signal connections.

Reliable Protection for Industrial Connections

Industrial connector hoods such as the ILME CHV06LG provide a protected enclosure for compatible multipole inserts while creating a practical cable entry point for detachable equipment wiring. The top-entry configuration routes the cable directly through the upper section of the hood, making it useful where installation layout favours straight cable entry.

The combination of a single locking lever, gasket, Pg16 top entry and high ingress protection makes the CHV06LG a practical enclosure component for machinery and automation systems. When paired with compatible ILME connector components and correctly assembled, it provides a secure and maintainable interface for power, control and signal circuits.

Typical Applications

  • Industrial machinery and production equipment.
  • Factory automation and control systems.
  • Electrical cabinets and machine interfaces.
  • Conveyor and material handling equipment.
  • Power, signal and control interconnections.
  • OEM machinery requiring detachable electrical connections.

Technical Specifications

Tick the specs you need, then view products that match.

Cable Entry Top entry PG16
Device Type Hood
Frame Size 44.27
Product Series ILME C-Type
Manufacturer ILME
Series C-TYPE
Model CHV06LG
Alternative reference CHV 06 LG
Product type Hood
Connector size 44.27
Closing type 1 lever
Gasket Yes
Cable entry position Top
Cable entry Pg16
Protection rating IP65 / IP66 / IP69
EAN 8015747024228
IP Rating IP65, IP66, IP69

Frequently Asked Questions

What is the ILME CHV06LG used for?

The CHV06LG is an industrial connector hood designed for compatible ILME size 44.27 multipole connector inserts used in machinery, automation and electrical installations.

What cable entry does the CHV06LG have?

The CHV06LG features a Pg16 top cable entry, allowing the cable to enter directly through the top of the connector hood.

What connector size is the ILME CHV06LG?

The CHV06LG is an ILME size 44.27 hood designed for use with compatible inserts and mating enclosure components of the corresponding size.

What is the protection rating of the CHV06LG?

When correctly assembled with compatible connector components, the CHV06LG provides IP65 / IP66 / IP69 protection.

Does the ILME CHV06LG have a gasket?

Yes. The CHV06LG is a gasketed hood, helping support effective sealing when the connector enclosure is correctly assembled with compatible components.

Trusted for Industrial Connectivity

ILME C-TYPE connector enclosures are widely used by machine builders, panel builders and automation engineers to provide robust, maintainable and dependable electrical connections in industrial machinery and control systems.
