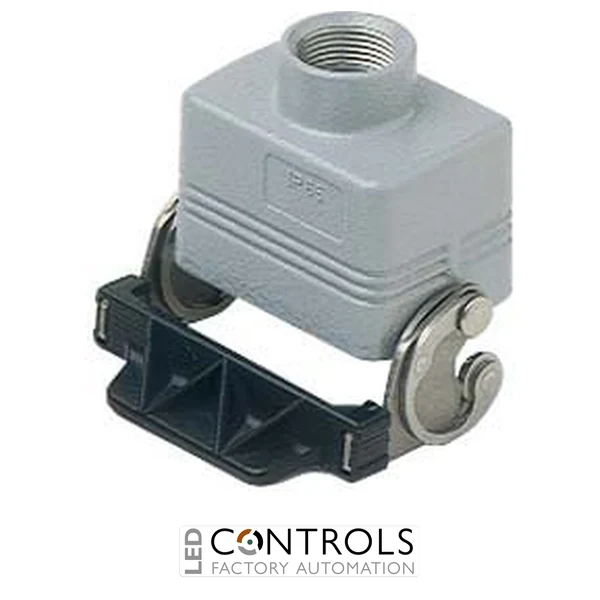

CHV06LX16 Ilme Hood 1 lever top entry PG 16 Size 44.27

CHV06LX16 Ilme Hood 1 lever top entry PG 16 Size 44.27

ILME CHV06LX16 C-Type connector hood with one lever locking, top entry PG16 cable connection and size 44.27 format for industrial multipole connector applications.

SKU: CHV06LX16Alt SKU: CHV 06 LX16MPN: CHV06LX16
Price
List Price £18.99 ex VAT
Your Price (ex VAT)
£18.99
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £18.99
Trade pricing is personalised to your account

Manufacturer Lead Time

£18.99

Why Choose the ILME CHV06LX16 Hood?

The ILME CHV06LX16 is a durable industrial connector hood designed to provide secure mechanical protection for heavy-duty multipole connector inserts. Featuring a size 44.27 insert mounting format, a single lever locking system and a top entry PG16 cable gland connection, it is ideal for reliable electrical connections in industrial automation and machinery applications.

As part of the ILME C-Type connector housing range, the CHV06LX16 combines robust construction with practical cable routing, helping protect connector assemblies while allowing straightforward installation and maintenance in demanding industrial environments.

The compact hood design provides protection for compatible ILME connector inserts and supports secure cable management through its PG16 top entry. It is suitable for applications requiring dependable multipole connections in control systems, machinery and industrial equipment.

Key Advantages

  • Heavy-duty connector hood designed for industrial applications.
  • 44.27 size compatibility for ILME multipole connector inserts.
  • Single lever locking system for secure connector retention.
  • PG16 top cable entry for organised cable routing.
  • Compact design suitable for restricted installation spaces.
  • Reliable protection for automation and machinery connection systems.

Key Features

  • ILME C-Type series connector hood.
  • Model: CHV06LX16.
  • Size 44.27 connector insert format.
  • One lever locking design.
  • Top entry PG16 cable connection.
  • Metal hood construction for industrial durability.
  • Compatible with ILME heavy-duty multipole connector inserts.
  • Designed for cable protection and connector security.

Reliable Protection for Industrial Connections

The ILME CHV06LX16 hood provides a secure protective enclosure for multipole connector systems used in industrial environments. Its durable construction helps protect connections from mechanical impact and environmental exposure while maintaining easy access for servicing.

Designed for automation engineers and machine builders, the CHV06LX16 offers dependable connector integration with practical cable entry positioning for efficient installation within industrial electrical systems.

Typical Applications

  • Industrial automation equipment.
  • Machine building and control systems.
  • Manufacturing machinery.
  • Electrical control panels.
  • OEM equipment connection systems.
  • Industrial multipole connector assemblies.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Hood
Frame Size 44.27
Housing Material Metal (die-cast aluminium)
Product Series ILME C-Type
Cable Entry Top entry PG16
Manufacturer ILME
Series C-Type
Model CHV06LX16
Product type Connector hood for industrial multipole inserts
Housing size 44.27
Locking type One lever
Cable entry PG16 top entry
Material Metal
Mounting type Hood mounting
Protection rating IP65
IP Rating IP65

Frequently Asked Questions

What is the ILME CHV06LX16 used for?

The ILME CHV06LX16 is an industrial connector hood designed to protect compatible ILME heavy-duty multipole connector inserts.

What connector size does the CHV06LX16 support?

The CHV06LX16 supports ILME connector inserts with a 44.27 size format.

What cable entry does this hood have?

The CHV06LX16 features a PG16 top entry for suitable cable gland installation.

What locking system is used on the CHV06LX16?

The CHV06LX16 uses a single lever locking mechanism for secure connector mating.

Where is the CHV06LX16 typically installed?

The hood is typically installed on industrial machinery, automation equipment and electrical control systems requiring protected multipole connections.

Trusted by Industrial Connection Professionals

ILME C-Type connector hoods are widely used by automation engineers and machine builders to provide reliable, durable and protected industrial connection solutions.
