Why Choose the ILME CHV10LG Hood?

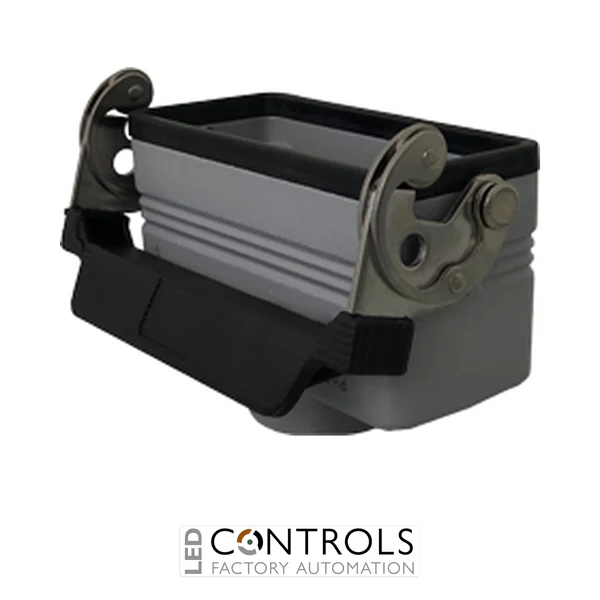

The ILME CHV10LG is a robust heavy-duty connector hood designed to protect multipole electrical connector inserts in industrial machinery, automation and control applications. As part of the established ILME C-TYPE series, it combines a durable metal enclosure with a single locking lever and gasket for secure connector mating and dependable environmental protection.
Designed in the size 57.27 format, the CHV10LG features a top-entry Pg16 cable connection that allows the cable to exit directly from the top of the hood. The integrated single-lever closing system makes connection and disconnection straightforward while securely retaining compatible mating connector components.
The aluminium hood provides IP65, IP66 and IP69 protection when correctly assembled with compatible components. With an operating temperature range of -40 °C to +125 °C, a gasketed coupling interface and robust industrial construction, the CHV10LG is well suited to demanding power, control and signal connections.
Key Advantages
- Robust heavy-duty connector hood for industrial applications.
- Size 57.27 format for compatible ILME connector inserts and components.
- Single locking lever enables secure and convenient connector mating.
- Top-entry Pg16 cable connection provides straightforward cable routing.
- Integrated gasket supports dependable environmental sealing.
- IP65 / IP66 / IP69 protection when correctly assembled.
Key Features
- ILME C-TYPE series.
- Heavy-duty connector hood.
- One locking lever.
- Top cable entry Pg16.
- Size 57.27 enclosure format.
- 10+E pole format for compatible connector inserts.
- Aluminium body for industrial durability.
- Coupling enclosure with gasket.
- IP65 / IP66 / IP69 degree of protection when assembled.
- RAL 7040 grey finish.
Reliable Protection for Industrial Connector Systems
Heavy-duty connector hoods such as the ILME CHV10LG provide mechanical and environmental protection for detachable electrical connections. When assembled with compatible inserts, housings and cable accessories, the hood helps protect power, control and signal connections while allowing machinery and equipment to be conveniently disconnected for installation, servicing and maintenance.
The CHV10LG combines an aluminium enclosure, gasketed interface and single-lever closing system with a practical top cable entry. This configuration makes it particularly suitable where cables need to route vertically from the connector while maintaining a compact and secure industrial connection.
Typical Applications
- Industrial machinery and automation equipment.
- Electrical control and distribution systems.
- Manufacturing and production machinery.
- Robotics and automated material handling systems.
- Motor, power, control and signal connections.
- Heavy-duty multipole connector installations requiring top cable entry.
