Why Choose the ILME CHV16LG Hood?

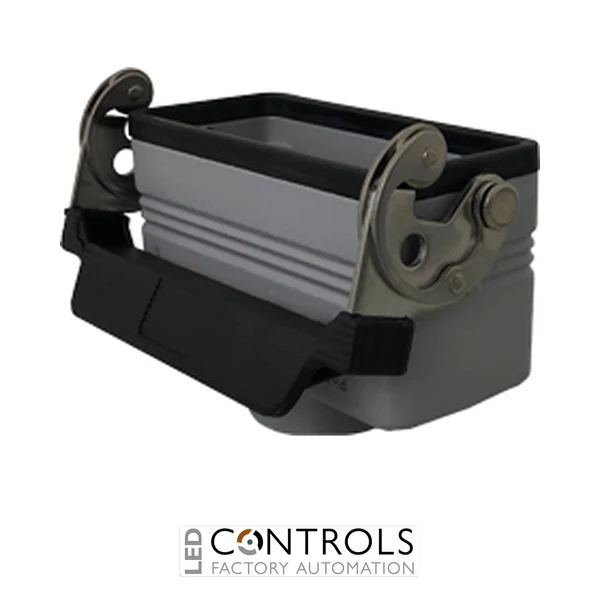

The ILME CHV16LG is a robust heavy-duty industrial connector hood designed for compatible multipole connector inserts used in machinery, automation and industrial electrical installations. Its size 77.27 format and aluminium construction provide a durable enclosure for detachable electrical connections where reliable mechanical protection and secure coupling are required.
Unlike pegged hood variants, the CHV16LG incorporates one locking lever, allowing it to engage with the corresponding locking pegs of a compatible ILME mating housing or hood. The connector interface incorporates a gasket to support effective environmental sealing when the assembly is correctly coupled.
Featuring a Pg21 top cable entry, the CHV16LG provides a direct route for cabling into the connector assembly and accepts a compatible Pg21 cable gland or fitting. When correctly assembled with suitable components, the hood provides IP65, IP66 and IP69 protection, making it suitable for demanding industrial environments where resistance to dust and water ingress is important.
Key Advantages
- Heavy-duty aluminium industrial connector hood for demanding applications.
- Size 77.27 format for compatible ILME multipole connector inserts.
- Single locking lever provides secure mechanical coupling with compatible pegged components.
- Integrated gasket supports effective sealing at the connector interface.
- Pg21 top cable entry provides straightforward cable routing.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
Key Features
- ILME heavy-duty connector hood.
- Aluminium construction.
- One locking lever.
- Connector sealing gasket.
- Size 77.27 connector format.
- Top cable entry.
- Pg21 cable entry.
- IP65 / IP66 / IP69 degree of protection when correctly assembled.
- Designed for compatible ILME heavy-duty multipole connector assemblies.
Reliable Connector Protection for Industrial Machinery
Heavy-duty connector hoods such as the ILME CHV16LG provide a protective enclosure around compatible multipole connector inserts while forming the cable-side portion of a detachable industrial electrical connection. The single-lever closing mechanism provides secure engagement with corresponding pegs on a compatible mating component, helping maintain a stable mechanical connection during operation.
The combination of an aluminium enclosure, gasket, Pg21 top cable entry and IP65 / IP66 / IP69 protection makes the CHV16LG suitable for industrial machinery and automation systems where connector assemblies may be exposed to dust, moisture and demanding operating conditions while still requiring convenient disconnection for maintenance.
Typical Applications
- Industrial machinery and automation systems.
- Control panels and electrical equipment.
- Production and processing machinery.
- Material handling and conveyor systems.
- Machine tools and manufacturing equipment.
- Heavy-duty multipole connector installations.
