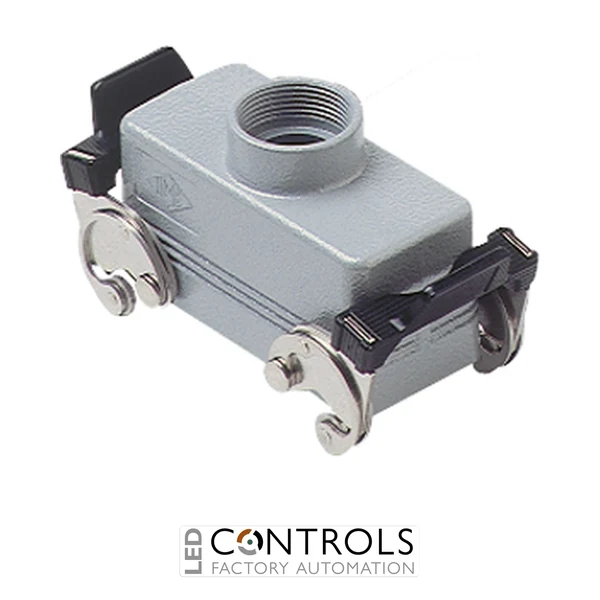

Why Choose the ILME CHV16X C-TYPE Hood?
The ILME CHV16X is a robust industrial multipole connector hood designed for detachable electrical connections in machinery, automation and control applications. Part of the established ILME C-TYPE enclosure range, it combines a size 77.27 connector interface with two locking levers and a straight Pg21 top cable entry.
The CHV16X provides durable mechanical protection for compatible ILME multipole connector inserts while supporting convenient connection and disconnection during installation and maintenance. Its two-lever locking arrangement is designed to engage with compatible peg-equipped mating housings, helping maintain a secure connector interface in demanding industrial installations.
A Pg21 top cable entry provides straight cable routing into the hood, making the CHV16X suitable for industrial power, control and signal cable assemblies. When correctly assembled and locked with compatible ILME components and suitable cable-entry accessories, the enclosure system provides dependable protection against environmental exposure.
Key Advantages
- Heavy-duty C-TYPE industrial connector hood for machinery and automation applications.
- Size 77.27 interface for compatible ILME multipole connector inserts.
- Two locking levers provide secure connector mating and convenient release.
- Pg21 top cable entry supports straightforward cable routing.
- Robust metal construction designed for demanding industrial service.
- Suitable for detachable power, control and signal connections in industrial equipment.
Key Features
- ILME C-TYPE enclosure range.
- Size 77.27 connector format.
- Hood configuration for cable-mounted connector assemblies.
- Two-lever locking system.
- Top cable entry.
- Pg21 threaded cable-entry size.
- Designed to mate with compatible peg-equipped ILME housings.
- Suitable for heavy-duty industrial multipole connector installations.
Reliable Protection for Industrial Connections
Heavy-duty connector hoods such as the ILME CHV16X provide a protected enclosure around compatible multipole connector inserts while retaining the convenience of a detachable cable connection. This makes them particularly useful on machinery and production equipment where electrical assemblies must be disconnected for installation, servicing or equipment replacement.
The CHV16X combines the size 77.27 connector format with dual lever locking and a Pg21 top entry. This configuration provides a practical solution where straight cable routing and a secure two-point locking arrangement are required for industrial power, control or signal connections.
Typical Applications
- Industrial machinery and automation systems.
- Multipole power, control and signal connections.
- Machine tools and production equipment.
- Factory automation and manufacturing lines.
- Control-panel and field wiring connections.
- Industrial cable assemblies and wiring harnesses.
