Why Choose the Ilme CHV24 Hood?

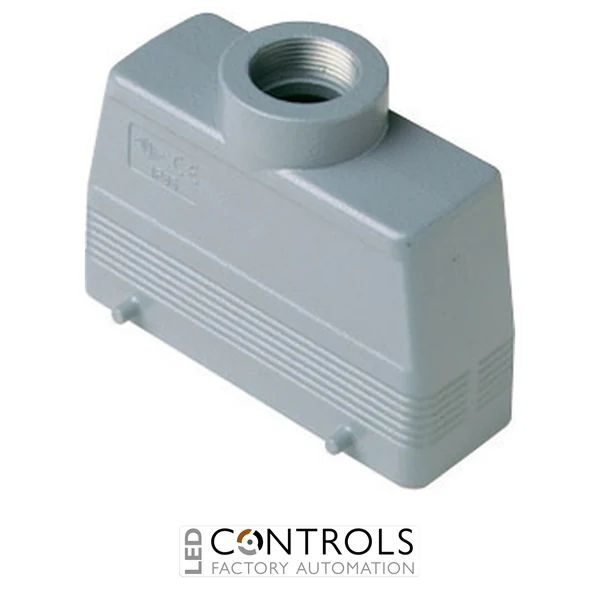

The Ilme CHV24 is a robust industrial multipole connector hood designed to protect electrical inserts and terminations in machinery, automation and control applications. Part of the Ilme C-TYPE series, it combines the size 104.27 enclosure format with four locking pegs and a Pg21 top cable entry for dependable heavy-duty connector assemblies.
The CHV24 features a Pg21 top cable entry, allowing the incoming cable to approach the connector vertically for convenient routing in suitable installations. Its four-peg closing arrangement is designed to couple with compatible Ilme housings equipped with locking levers, creating a secure and serviceable multipole connection.
With IP65, IP66 and IP69 protection when correctly assembled with compatible components, an operating temperature range of -40 °C to +125 °C and a durable epoxy-coated die-cast aluminium body, the CHV24 is well suited to demanding industrial environments where reliable connector protection and straightforward maintenance are required.
Key Advantages
- Heavy-duty hood for industrial multipole connector systems.
- Four locking pegs provide secure coupling with compatible lever-equipped housings.
- Pg21 top cable entry supports convenient vertical cable routing.
- Size 104.27 format for compatible Ilme inserts and connector components.
- IP65 / IP66 / IP69 protection when correctly assembled.
- Wide -40 °C to +125 °C operating temperature range for demanding industrial applications.
Key Features
- Ilme C-TYPE series.
- Size 104.27 enclosure format.
- Four-peg closing system.
- Pg21 top cable entry.
- IP65 / IP66 / IP69 degree of protection when correctly coupled.
- Durable epoxy-coated die-cast aluminium construction.
- RAL 7040 grey finish.
- Operating temperature range from -40 °C to +125 °C.
- RoHS compliant construction.
- Designed for compatible Ilme heavy-duty multipole connector systems.
Reliable Connector Protection for Industrial Installations
Heavy-duty connector hoods protect multipole inserts and cable terminations while providing the detachable side of an industrial connector assembly. The Ilme CHV24 combines a robust C-TYPE enclosure with four locking pegs, allowing it to securely engage with a compatible lever-equipped Ilme housing while retaining convenient access for installation, servicing and equipment replacement.
The Pg21 top entry provides a direct route for the incoming cable, while the enclosure's high degree of ingress protection helps safeguard the correctly assembled connection against dust and water. This makes the CHV24 a practical choice for machinery and automation systems where reliable connectivity, environmental protection and straightforward maintenance are important.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Machine-to-equipment electrical interfaces.
- Motor, actuator and control connections.
- Conveyor and material handling systems.
- Robotics and automated manufacturing equipment.
