Why Choose the Ilme CHV24G Hood?

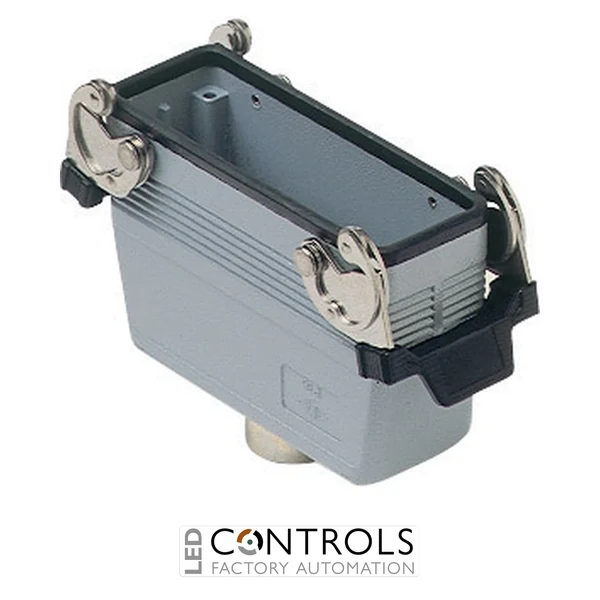

The Ilme CHV24G is a robust industrial multipole connector hood with two locking levers and gasket, designed for dependable electrical connections in machinery, automation and industrial control applications. Part of the Ilme C-TYPE series, it uses the size 104.27 enclosure format and provides a Pg21 top cable entry for straightforward cable routing.
The CHV24G incorporates two locking levers manufactured from stainless steel and polyamide, providing secure mechanical coupling with compatible Ilme connector housings. An NBR gasket supports effective environmental sealing, while the top-entry Pg21 configuration allows the cable to approach the connector vertically.
With IP65, IP66 and IP69 protection when correctly assembled, a wide operating temperature range of -40 °C to +125 °C and a durable industrial enclosure, the CHV24G is suitable for demanding installations where secure coupling, ingress protection and convenient servicing are important.
Key Advantages
- Heavy-duty connector hood for industrial multipole systems.
- Two locking levers provide secure mechanical coupling with compatible housings.
- Integrated NBR gasket supports reliable environmental sealing.
- Pg21 top cable entry provides convenient vertical cable routing.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
- Wide -40 °C to +125 °C operating temperature range for demanding industrial environments.
Key Features
- Ilme C-TYPE series.
- Size 104.27 enclosure format.
- Two-lever closing system.
- Pg21 top cable entry.
- Integrated NBR gasket.
- IP65 / IP66 / IP69 degree of protection when correctly coupled.
- Lever construction using stainless steel and polyamide (PA).
- RAL 7040 grey finish.
- Operating temperature range from -40 °C to +125 °C.
- RoHS compliant and manufactured with no declared REACH SVHC substances.
Reliable Sealing and Connector Protection for Industrial Installations
Heavy-duty connector hoods protect electrical inserts and cable terminations while providing a detachable connection point for industrial machinery and equipment. The Ilme CHV24G combines a size 104.27 C-TYPE enclosure with two locking levers and an NBR gasket, helping create a securely coupled and environmentally protected connector assembly.
The Pg21 top entry provides a direct route for the incoming cable, while the lever-and-gasket arrangement supports reliable sealing when the hood is correctly mated with compatible components. This makes the CHV24G particularly suitable for applications requiring robust connectivity, straightforward servicing and dependable protection against dust and water ingress.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Machine-to-equipment electrical interfaces.
- Power, signal and control connections.
- Conveyor and material handling systems.
- Robotics and automated manufacturing equipment.
