Why Choose the ILME CHV24L Hood?

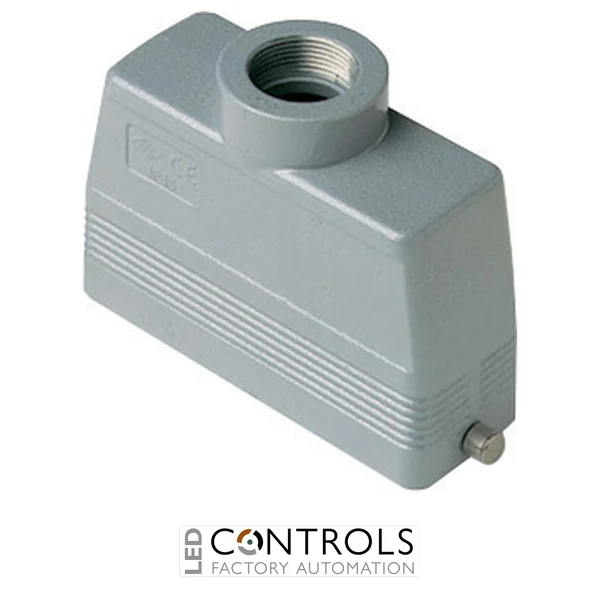

The ILME CHV24L is a robust industrial multipole connector hood designed for dependable electrical connections in machinery, automation and control applications. Part of the established ILME C-TYPE enclosure range, it provides durable protection for compatible rectangular connector inserts in a size 104.27 format.
The CHV24L features two locking pegs designed to engage securely with a compatible lever-equipped ILME housing. This arrangement provides a reliable mechanical connection while allowing the connector assembly to be conveniently connected and disconnected during equipment installation, maintenance and servicing.
A Pg21 top cable entry provides direct cable routing into the hood and is particularly useful where the installation layout favours cable entry from above. When correctly assembled with compatible connector components, the CHV24L provides IP65 / IP66 / IP69 protection, making it a dependable enclosure component for demanding industrial applications.
Key Advantages
- Robust C-TYPE hood for industrial multipole connectors.
- Designed for compatible size 104.27 connector inserts.
- Two locking pegs provide secure mating with compatible lever-equipped housings.
- Pg21 top cable entry supports direct and space-efficient cable routing.
- High environmental protection of IP65 / IP66 / IP69 when correctly assembled.
- Durable industrial construction for machinery, automation and electrical installations.
Key Features
- ILME C-TYPE enclosure series.
- Size 104.27 connector hood.
- Two locking pegs.
- Pg21 top cable entry.
- IP65 / IP66 / IP69 ingress protection when correctly assembled.
- Designed for compatible ILME rectangular multipole connector inserts.
- Top-entry configuration for convenient industrial cable routing.
- Suitable for industrial power, control and signal connections.
Reliable Protection for Industrial Connections
Industrial connector hoods such as the ILME CHV24L provide a protective enclosure for compatible multipole inserts while creating a practical cable termination point for detachable equipment wiring. The size 104.27 format supports larger rectangular connector inserts, making it suitable for applications requiring multiple power, control or signal contacts within a single connector assembly.
The top-entry design routes the cable directly through the upper section of the hood, while the two locking pegs provide secure engagement with a compatible lever-equipped housing. Combined with its IP65 / IP66 / IP69 protection when correctly assembled, the CHV24L provides a practical and maintainable connection solution for demanding industrial systems.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical cabinets and machine interfaces.
- Conveyor and material handling equipment.
- Power, signal and control interconnections.
- OEM machinery requiring detachable electrical connections.
