Why Choose the Ilme CHV32 Hood?

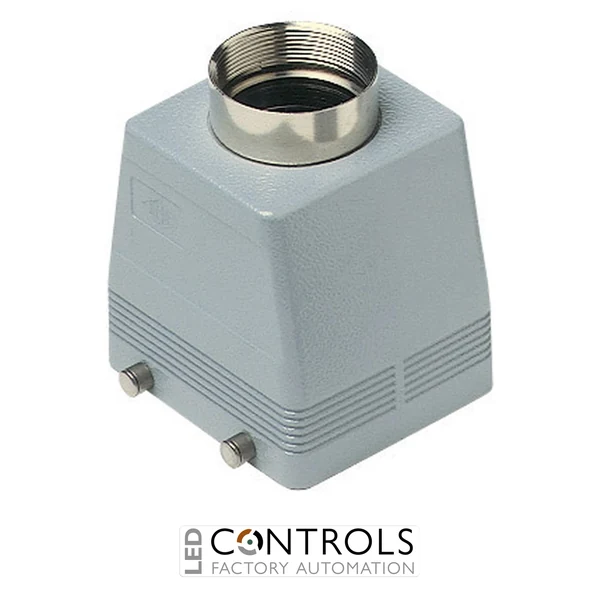

The Ilme CHV32 is a robust C-TYPE heavy-duty industrial connector hood designed to protect compatible multipole connector inserts in machinery, automation and electrical installations. Featuring an Ilme size 77.62 enclosure, four locking pegs and a straight top cable entry, it provides a durable and dependable connection solution for demanding industrial environments.
The CHV32 is designed to mate with compatible Ilme housings equipped with locking levers, with its four locking pegs helping provide secure mechanical engagement. Its rugged enclosure construction protects internal connector components while allowing assemblies to be disconnected conveniently during installation, servicing or machinery maintenance.
A Pg36 top cable entry with adapter provides a practical cable-routing arrangement for larger industrial cables. When correctly assembled with compatible Ilme components and suitable cable glands, the CHV32 supports IP65, IP66 and IP69 protection, making it suitable for industrial environments where resistance to dust, moisture and water ingress is important.
Key Advantages
- Heavy-duty Ilme C-TYPE connector hood for industrial applications.
- Size 77.62 format for compatible Ilme multipole connector inserts.
- Four locking pegs for secure mating with compatible lever-equipped housings.
- Pg36 straight top cable entry with adapter for convenient cable routing.
- Rugged enclosure construction protects electrical connector components.
- IP65, IP66 and IP69 protection when correctly assembled.
- Suitable for machinery, automation and industrial control installations.
Key Features
- Ilme C-TYPE series.
- Heavy-duty multipole connector hood.
- Size 77.62 enclosure format.
- Four locking pegs.
- Pg36 top cable entry.
- Top cable entry fitted with adapter.
- Straight cable-entry orientation.
- Designed for compatible lever-locking housings.
- IP65 / IP66 / IP69 ingress protection when correctly assembled.
Reliable Protection for Industrial Connections
Heavy-duty connector hoods such as the Ilme CHV32 provide mechanical and environmental protection for multipole connector inserts while creating a secure cable termination point. This modular arrangement allows power, control and signal circuits to be connected efficiently and disconnected when machinery requires servicing, replacement or relocation.
The CHV32 combines a large size 77.62 enclosure with four locking pegs and a Pg36 top cable entry, making it particularly suitable for industrial connector assemblies requiring substantial cable capacity and secure lever-operated mating.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control panels and cabinets.
- Motor and machine connection systems.
- Material handling and conveyor equipment.
- Industrial power, signal and control connections.
