Why Choose the ILME CHV32G29 Hood?

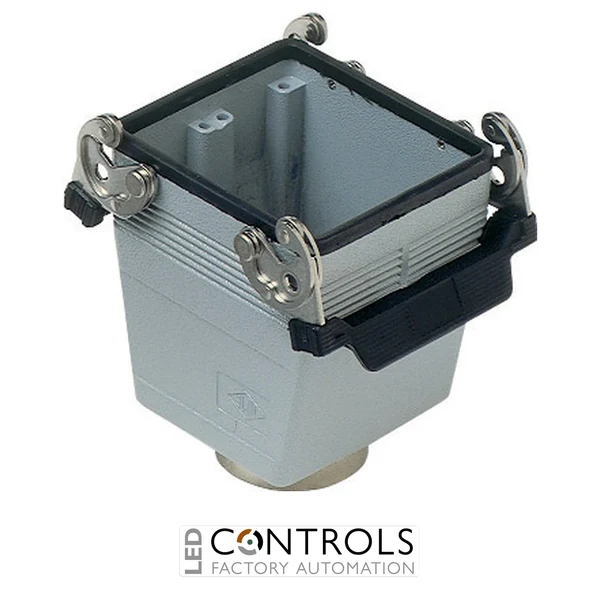

The ILME CHV32G29 is a robust C-TYPE heavy-duty industrial connector hood designed for compatible multipole connector inserts used in machinery, automation and industrial electrical installations. Its size 77.62 format provides a durable enclosure for detachable electrical connections where secure mechanical coupling and dependable environmental protection are required.
The CHV32G29 features two locking levers manufactured from stainless steel and polyamide, providing secure engagement with the corresponding pegs of a compatible ILME mating component. An NBR gasket supports effective sealing of the connector interface, while the RAL 7040 grey enclosure is engineered for demanding industrial applications.
Featuring a Pg29 top cable entry with adapter, the CHV32G29 provides direct cable routing into the connector assembly. When correctly assembled with compatible components, it provides IP65, IP66 and IP69 protection and is specified for an operating temperature range of -40 °C to +125 °C.
Key Advantages
- Heavy-duty C-TYPE industrial connector hood.
- Size 77.62 format for compatible ILME multipole connector components.
- Two locking levers provide secure mechanical coupling.
- NBR gasket supports effective sealing of the connector interface.
- Pg29 top cable entry with adapter provides straightforward cable routing.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
- Wide -40 °C to +125 °C specified operating temperature range.
Key Features
- ILME C-TYPE heavy-duty connector hood.
- Two-lever closing system.
- NBR sealing gasket.
- Size 77.62 connector format.
- Top cable entry with adapter.
- Pg29 cable entry.
- IP65 / IP66 / IP69 degree of protection.
- RAL 7040 grey finish.
- DNV and BV certified.
- UL category ECBT2 and cUL category ECBT8.
Reliable Connector Protection for Industrial Machinery
The ILME CHV32G29 provides a protected cable-side enclosure for compatible heavy-duty multipole connector inserts. Its two-lever closing arrangement enables secure engagement with a suitable pegged mating component, while the NBR gasket helps maintain environmental sealing across the connector interface when the assembly is correctly coupled.
With its Pg29 top cable entry, wide specified operating temperature range and IP65 / IP66 / IP69 protection, the CHV32G29 is well suited to industrial machinery and automation systems where connector assemblies may encounter dust, moisture and demanding operating conditions while still requiring convenient disconnection for installation and maintenance.
Typical Applications
- Industrial machinery and automation systems.
- Control panels and electrical equipment.
- Production and processing machinery.
- Material handling and conveyor systems.
- Machine tools and manufacturing equipment.
- Heavy-duty multipole connector installations.
