Why Choose the ILME CIFJD0.3 Female Crimp Contact?

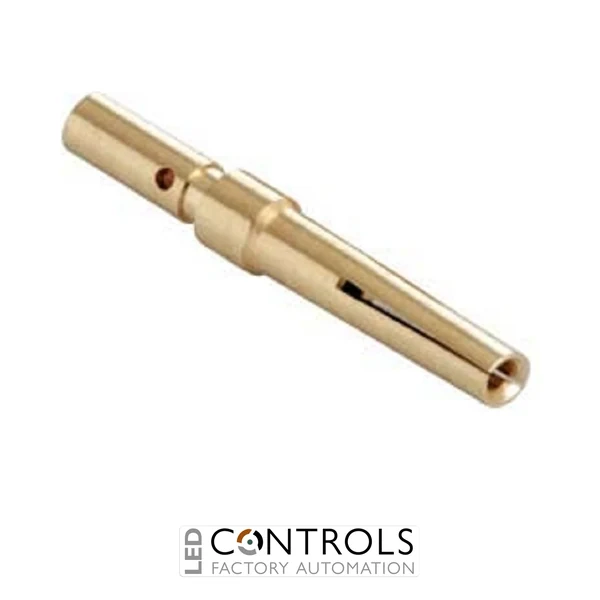

The ILME CIFJD0.3 is a precision female crimp contact from the ILME CI contact range, designed for compatible heavy-duty multipole connector inserts. Rated at 5 A, it accepts conductors from 0.13 mm² to 0.33 mm², corresponding to 26–22 AWG, making it suitable for compact industrial signal and control connections.
The CIFJD0.3 is manufactured from copper alloy and uses a turned, basic gold-plated contact design. Gold plating supports dependable electrical contact performance, while the precision-turned construction provides the consistent geometry required for reliable mating within compatible ILME connector systems.
Using crimp termination, the CIFJD0.3 enables conductors to be securely terminated without soldering when suitable ILME-approved tooling is used. A conductor slot diameter of 0.9 mm and recommended stripping length of 4 mm are specified for this conductor range, helping support repeatable connector assembly.
Key Advantages
- Female crimp contact for compatible ILME CI connector systems.
- 5 A rated current for industrial signal and control connections.
- Accepts conductors from 0.13 mm² to 0.33 mm².
- Basic gold-plated contact surface supports dependable electrical performance.
- Precision turned copper-alloy contact construction.
- Crimp termination enables secure, solder-free conductor installation.
Key Features
- ILME CI series contact.
- Female connection configuration.
- Crimp termination technology.
- Basic gold-plated turned contact.
- 0.13–0.33 mm² conductor cross-section range.
- 26–22 AWG compatible conductor range.
- 0.9 mm conductor slot diameter.
- 4 mm recommended stripping length.
Reliable Crimp Connectivity for Industrial Connectors
Crimp contacts provide an efficient and repeatable method of terminating individual conductors within industrial multipole connectors. When the correct conductor preparation and approved crimp tooling are used, the resulting mechanical and electrical connection is well suited to machinery, automation, instrumentation and control-system wiring.
The ILME CIFJD0.3 combines a 0.13–0.33 mm² conductor range with a 5 A current rating and basic gold-plated contact surface. This makes it particularly suitable for compact signal and control circuits requiring reliable female contacts within compatible ILME CI connector assemblies.
Typical Applications
- Industrial multipole connector assemblies.
- Automation and machine-control wiring.
- Signal and instrumentation connections.
- Factory automation equipment.
- Industrial cable harnesses.
- Control-panel and machine interconnections.
