Why Choose the ILME CIMA0.7 Male Crimp Contact?

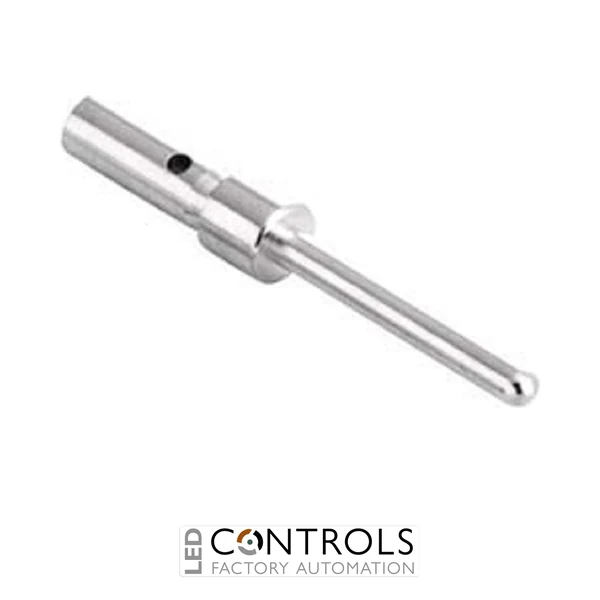

The ILME CIMA0.7 is a precision-manufactured male crimp contact designed for reliable electrical connections in ILME multipole industrial connector systems. Manufactured as part of ILME's CI contact range, this turned contact is suitable for applications requiring dependable signal and low-current power connections in industrial machinery, control panels and automation equipment.
The CIMA0.7 features a silver-plated contact surface to provide low electrical resistance and dependable conductivity during repeated connector mating cycles. Its crimp termination allows a strong mechanical and electrical connection to be formed without soldering when installed using the appropriate ILME-approved crimping tooling.
Rated for currents up to 5 A, the CIMA0.7 is designed for conductors with a cross-sectional area of 0.52–0.75 mm², corresponding to approximately 20–18 AWG. The contact requires a 4 mm stripping length and is intended for use with compatible ILME connector inserts accepting CI-series crimp contacts.
Key Advantages
- Precision male crimp contact for ILME industrial connectors.
- 5 A current rating for signal and low-current power connections.
- Suitable for 0.52–0.75 mm² conductors.
- Silver-plated turned contact provides reliable electrical conductivity.
- Crimp termination creates a secure connection without soldering.
- Designed for dependable use in industrial machinery and automation installations.
Key Features
- ILME CI-series crimp contact.
- Male contact configuration.
- 5 A rated current.
- 0.52–0.75 mm² conductor range.
- Compatible conductor size of approximately 20–18 AWG.
- Turned silver-plated contact construction.
- 4 mm recommended conductor stripping length.
- Designed for installation using suitable ILME-approved crimping tools.
Reliable Crimp Connections for Industrial Connectors
Crimp contacts provide a robust electrical connection by mechanically compressing the contact barrel around the conductor. When correctly terminated using the specified tooling, this method creates a consistent gas-tight connection that offers strong resistance to vibration and mechanical movement in industrial environments.
ILME CI-series contacts are designed for use within compatible modular and multipole connector inserts. The turned construction and silver-plated contact surface of the CIMA0.7 help maintain low contact resistance and reliable conductivity in machinery, control equipment and industrial interconnection systems.
Typical Applications
- ILME industrial multipole connectors.
- Machine control and automation wiring.
- Electrical control panels and cabinets.
- Industrial machinery interconnections.
- Signal and low-current power circuits.
- Factory automation and production equipment.
