Why Choose the Ilme CIVFD0.1 Female Crimp Contact?

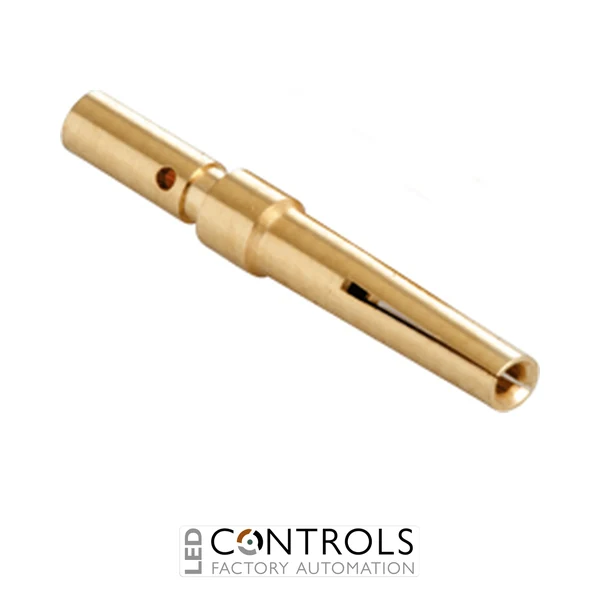

The Ilme CIVFD0.1 is a precision 5 A female crimp contact designed for D-SUB connector applications within Ilme industrial multipole connection systems. Part of the Ilme CI contact series, this turned contact features a gold-plated contact surface for dependable electrical performance in signal and control connections.
Designed for small conductor sizes, the CIVFD0.1 accepts conductors from 0.08–0.13 mm², equivalent to AWG 28–26. The crimp termination provides a secure mechanical and electrical connection without soldering, making the contact well suited to repeatable production wiring, cable harnesses and industrial connector assembly.
The CIVFD0.1 is intended for compatible Ilme MIXO D-SUB modular connector systems. CI 5 A D-SUB contact systems have electrical characteristics of 5 A, 50 V and 0.8 kV rated impulse withstand voltage according to EN 61984, providing a compact solution for low-current signal and control circuits.
Key Advantages
- Precision female crimp contact for D-SUB connectors.
- 5 A current rating for compatible Ilme CI connector systems.
- Gold-plated contact surface supports reliable electrical connectivity.
- Accepts fine conductors from 0.08–0.13 mm².
- Compatible with AWG 28–26 conductors.
- Crimp termination provides a secure connection without soldering.
- Designed for compatible Ilme MIXO D-SUB modular inserts.
Key Features
- Ilme CI series contact.
- Female contact configuration.
- 5 A rated current.
- Gold-plated contact surface.
- Crimp connection.
- Conductor cross-section of 0.08–0.13 mm².
- Conductor size of AWG 28–26.
- Designed for D-SUB connector applications.
- Recommended stripping length of 4 mm.
- Suitable for compatible Ilme MIXO D-SUB modules.
Reliable Crimp Connections for D-SUB Systems
Crimp contacts provide a mechanically secure and electrically stable connection by compressing the contact barrel around the prepared conductor. When terminated using the correct tooling, this method supports consistent connection quality and efficient assembly without requiring solder, making it particularly suitable for industrial production and maintenance.
The CIVFD0.1 combines a compact female contact design with gold plating and compatibility with fine-gauge conductors. Within compatible Ilme MIXO D-SUB assemblies, it provides a practical solution for signal, control and data-related connections in industrial machinery and automation equipment.
Typical Applications
- Ilme MIXO D-SUB modular connector assemblies.
- Industrial signal and control wiring.
- Factory automation equipment.
- Electrical control panels and cabinets.
- Industrial cable-harness production.
- Machinery and OEM electrical systems.
- Low-current multipole connector applications.
