Why Choose the ILME CIVFD0.5 Female Crimp Contact?

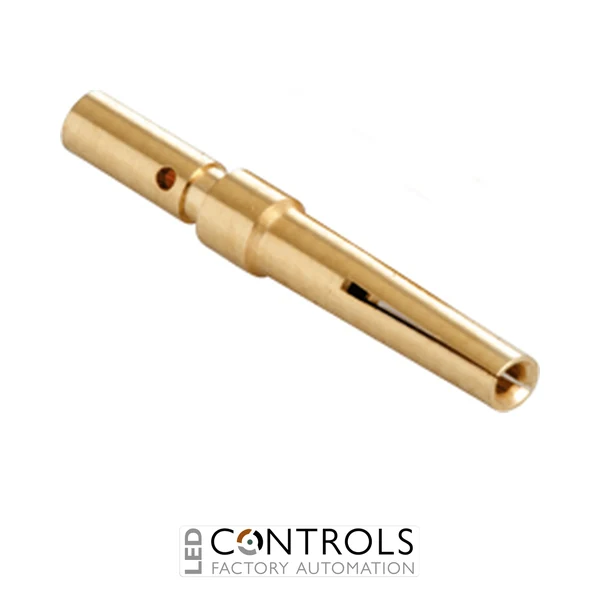

The ILME CIVFD0.5, also identified as CIVFD05 and CIVFD 0.5, is a precision female crimp contact for D-Sub connectors. Rated at 5 A, it is designed for compatible ILME connector assemblies used for signal, control and data connections in industrial machinery and automation equipment.
The CIVFD0.5 is a turned, gold-plated contact designed for conductors with a cross-sectional area from 0.2 mm² to 0.52 mm², corresponding to AWG 24 to AWG 20. Its crimp termination method provides a secure conductor connection when installed using suitable preparation and crimp tooling.
The gold-plated mating surface supports dependable electrical contact in low-current signal applications, while the female D-Sub configuration enables use within compatible connector systems. This combination makes the CIVFD0.5 a practical choice for industrial interfaces requiring compact wiring, repeatable termination and reliable connection performance.
Key Advantages
- Female crimp contact designed for compatible D-Sub connector assemblies.
- 5 A rated current for suitable industrial signal and control circuits.
- Accepts conductors from 0.2 mm² to 0.52 mm².
- Suitable for conductor sizes from AWG 24 to AWG 20.
- Turned, gold-plated contact provides a high-quality mating interface.
- Crimp termination provides secure wiring without soldering.
Key Features
- ILME industrial connector contact.
- Female connection.
- D-Sub connector application.
- Crimp termination.
- 5 A rated current.
- 0.2 mm² to 0.52 mm² conductor range.
- AWG 24 to AWG 20 conductor range.
- Turned, gold-plated contact.
- Suitable for compact industrial signal and control connections.
Precision Crimp Termination for D-Sub Connectors
Crimp contacts such as the ILME CIVFD0.5 provide the electrical interface between individual conductors and compatible D-Sub connector assemblies. A correctly executed crimp mechanically retains the conductor while creating the electrical connection required for reliable signal or control transmission through the completed connector.
With its 0.2 mm² to 0.52 mm² conductor range, 5 A rating and turned gold-plated construction, the CIVFD0.5 is suited to compact industrial wiring applications. Correct conductor preparation and suitable crimp tooling should be used to achieve a consistent and dependable termination.
Typical Applications
- Industrial D-Sub connector assemblies.
- Industrial machinery and automation systems.
- Control and instrumentation wiring.
- Signal and low-current electrical circuits.
- Production and processing equipment.
- Machine control and communication interfaces.
