Why Choose the ILME CIVMD0.1 Male Crimp Contact?

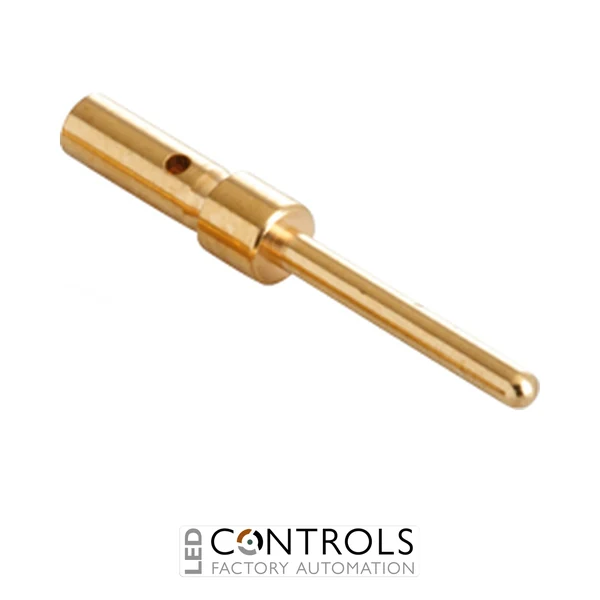

The ILME CIVMD0.1, also identified as CIVMD01 and CIVMD 0.1, is a precision male crimp contact for D-Sub connectors. Rated at 5 A, it is designed for compatible ILME connector assemblies used for signal, control and interface connections in industrial machinery and automation equipment.
The CIVMD0.1 is a turned, gold-plated contact designed for conductors with a cross-sectional area from 0.08 mm² to 0.13 mm², corresponding to AWG 28 to AWG 26. Its crimp termination provides a mechanically secure conductor connection when installed using suitable conductor preparation and crimp tooling.
The gold-plated mating surface supports dependable electrical contact in compact signal and control applications. Combined with its male D-Sub configuration and small conductor range, the CIVMD0.1 provides a practical termination solution for densely populated industrial connector assemblies requiring reliable and repeatable wiring.
Key Advantages
- Male crimp contact designed for compatible D-Sub connector assemblies.
- 5 A rated current for suitable industrial signal and control circuits.
- Accepts conductors from 0.08 mm² to 0.13 mm².
- Suitable for conductor sizes from AWG 28 to AWG 26.
- Turned, gold-plated contact provides a high-quality electrical mating interface.
- Crimp termination enables secure wiring without soldering.
Key Features
- ILME CI series crimp contact.
- Male connection.
- D-Sub connector application.
- Crimp termination.
- 5 A rated current.
- 0.08 mm² to 0.13 mm² conductor range.
- AWG 28 to AWG 26 conductor range.
- Turned, gold-plated contact.
- Suitable for compact industrial signal and control connections.
Precision Crimp Termination for D-Sub Connectors
Crimp contacts such as the ILME CIVMD0.1 provide the electrical interface between individual conductors and compatible D-Sub connector assemblies. A correctly executed crimp mechanically retains the conductor while establishing the electrical connection required for reliable transmission through the completed connector.
With its 0.08 mm² to 0.13 mm² conductor range, 5 A rating and turned gold-plated construction, the CIVMD0.1 is particularly suited to compact industrial wiring. Correct conductor preparation and suitable crimp tooling should be used to achieve a consistent and dependable termination.
Typical Applications
- Industrial D-Sub connector assemblies.
- Industrial machinery and automation systems.
- Control and instrumentation wiring.
- Signal and low-current electrical circuits.
- Production and processing equipment.
- Machine control and communication interfaces.
