Why Choose the Ilme CJK 8B IFT RJ45 Female Connector?

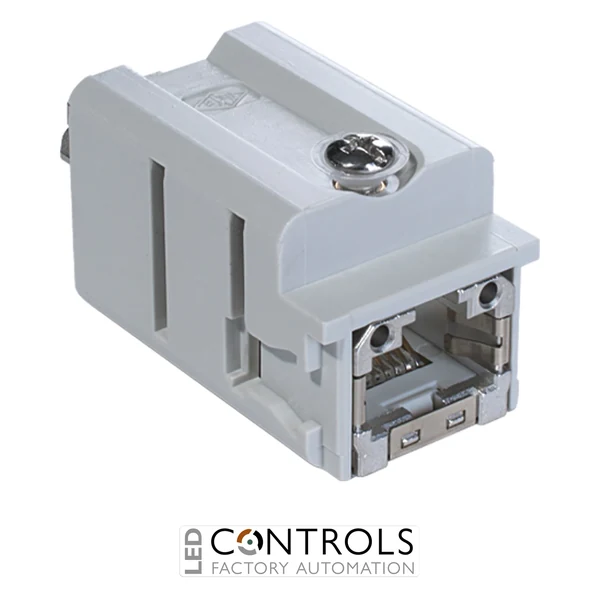

The Ilme CJK 8B IFT is a female RJ45 Cat. 6A IDC connector insert designed for Ilme CJK adapter systems and industrial Ethernet applications. Using the compact size 21.21 format, it provides an integrated RJ45 interface for machinery, automation equipment and control systems where dependable high-speed data connectivity is required.
The connector uses IDC termination with contact coding according to T568B, allowing installation cable conductors to be terminated directly without fitting a conventional RJ45 plug to the field-wiring side. Its Cat. 6A performance makes it suitable for high-speed Ethernet networks, including applications requiring 10 Gigabit Ethernet capability.
Designed specifically for industrial environments, the CJK 8B IFT has a rated current of 1 A, an operating temperature range of -40 °C to +70 °C and a mechanical life of at least 500 mating cycles. The RJ45 interface also supports Power over Ethernet according to IEEE 802.3af, making it a versatile choice for networked industrial equipment.
Key Advantages
- Cat. 6A RJ45 female interface for high-speed industrial Ethernet connections.
- T568B contact coding provides a recognised structured cabling termination scheme.
- IDC termination enables direct connection of installation cable conductors.
- Supports 10 Gigabit Ethernet according to IEEE 802.3an.
- PoE compatible according to IEEE 802.3af.
- Compact size 21.21 format integrates into compatible Ilme industrial connector systems.
Key Features
- Ilme CJK adapters series.
- Female RJ45 connector interface.
- Cat. 6A performance category.
- IDC connection for field-side cable termination.
- Contact coding according to T568B.
- 8 data contacts for Ethernet connectivity.
- Rated at 1 A, 50 V according to EN 61984.
- Rated impulse withstand voltage of 0.8 kV.
- Insulation resistance of ≥ 10 GΩ.
- Mechanical endurance of ≥ 500 mating cycles.
- Operating temperature range from -40 °C to +70 °C.
Reliable Industrial Ethernet Connectivity with T568B IDC Termination
The Ilme CJK 8B IFT provides a practical way to integrate standard RJ45 Ethernet connectivity into heavy-duty industrial connector systems. The female RJ45 interface accepts compatible Ethernet connections at the equipment side, while the rear IDC termination allows the individual conductors of an installation cable to be terminated according to the T568B wiring scheme. This arrangement supports clean, repeatable network installations without requiring a conventional field-terminated RJ45 plug behind the connector.
With Cat. 6A performance, 10 Gigabit Ethernet compatibility and a nickel-plated zinc die-cast shielding housing, the CJK 8B IFT is designed for demanding industrial data applications. When installed in an appropriate Ilme enclosure system, it provides a robust interface between industrial Ethernet cabling and networked machinery, controllers, drives and automation equipment.
Typical Applications
- Industrial Ethernet networks.
- PLC and automation control systems.
- Industrial PCs and operator interfaces.
- Networked machinery and production equipment.
- Robotics and automated manufacturing systems.
- 10 Gigabit Ethernet and PoE-capable industrial connections.
