Why Choose the ILME CK03CXAN Plastic Cover for Male Inserts?

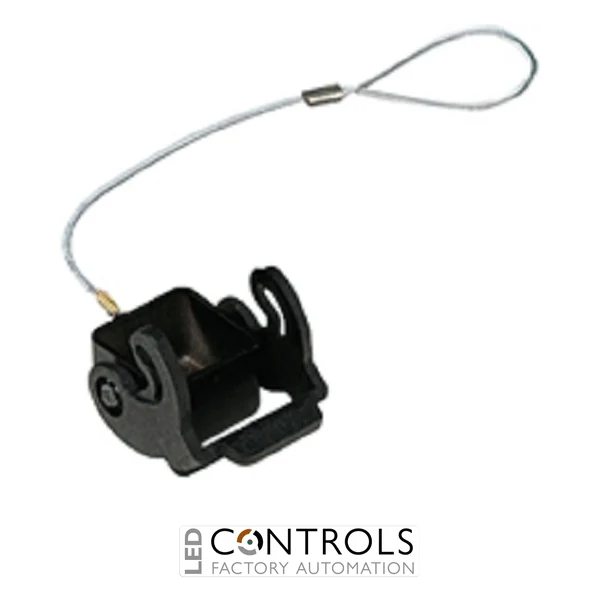

The ILME CK03CXAN, manufacturer designation CK 03 CXAN, is a compact plastic protective cover with a single locking lever designed for male inserts in ILME size 21.21 industrial connector assemblies. Part of the ILME CK compact enclosure series, this jet-black cover provides a practical way to protect exposed connector interfaces when machinery or equipment is disconnected.
Designed specifically for male inserts, the CK03CXAN incorporates a single polyamide locking lever together with a retaining loop manufactured from nylon and galvanised brass. The retaining loop helps keep the cover attached to the connector assembly when removed, reducing the risk of the protective cover becoming misplaced during operation or maintenance.
The CK03CXAN provides IP44 protection in its standard configuration and can achieve IP66, IP67 and IP69 protection when used with the compatible ILME CKR 65 gasket and screw kit. Its compact size 21.21 construction, RAL 9005 black finish and wide -40 °C to +125 °C operating temperature range make it suitable for demanding machinery, automation and industrial electrical installations.
Key Advantages
- Compact protective cover specifically designed for male inserts.
- Single locking lever provides quick and secure closure.
- Integrated retaining loop helps keep the cover attached when disconnected.
- Compact size 21.21 format for ILME industrial connector assemblies.
- IP44 protection as standard, upgradeable to IP66 / IP67 / IP69 with the CKR 65 kit.
- Wide -40 °C to +125 °C operating temperature range for demanding environments.
Key Features
- ILME CK compact enclosure series.
- Designed for male connector inserts.
- Size 21.21 connector format.
- One polyamide locking lever.
- Integrated nylon and galvanised brass retaining loop.
- RAL 9005 jet-black finish.
- IP44 standard degree of protection.
- IP66 / IP67 / IP69 protection available with the CKR 65 kit.
- Type 12 protection according to UL 50 / UL 50E for the CK compact enclosure series.
- Operating temperature range from -40 °C to +125 °C.
- Mechanical life of at least 500 cycles for the CK compact enclosure series.
Reliable Protection for Industrial Connector Interfaces
Protective covers help shield disconnected industrial connector interfaces against contamination and accidental contact. The ILME CK03CXAN is designed to cover compatible male inserts, providing a compact protective solution for machinery, control equipment and industrial electrical systems where connectors may regularly be coupled and uncoupled.
The single-lever locking mechanism enables straightforward opening and closing, while the integrated retaining loop helps keep the cover with the connector assembly when it is not fitted. For installations requiring increased environmental protection, the compatible ILME CKR 65 gasket and screw kit enables the CK compact enclosure system to achieve IP66, IP67 and IP69 protection.
Typical Applications
- Industrial machinery connector protection.
- Factory automation equipment.
- Electrical control panels and cabinets.
- Production and packaging machinery.
- Machine power, control and signal connections.
- Industrial electrical installations.
- Compatible ILME CK size 21.21 connector assemblies.
