Why Choose the Ilme CK03IA Angled Housing?

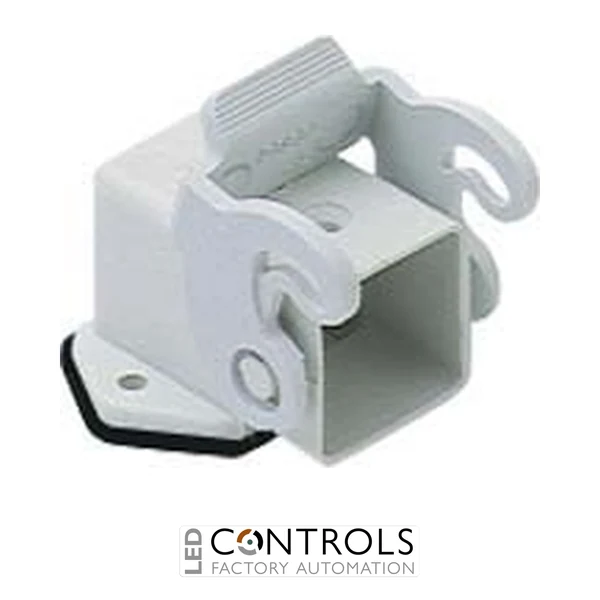

The Ilme CK03IA is a compact angled plastic housing with locking lever designed for Ilme CK series rectangular industrial connectors. With its size 21.21 format and angled cable orientation, it provides a practical enclosure solution where installation space or cable-routing requirements make a straight connector arrangement less suitable.
The CK03IA uses a robust self-extinguishing thermoplastic construction that combines low weight with electrical insulation and mechanical protection. Its integrated locking lever provides secure mating with a compatible Ilme connector enclosure, helping maintain a dependable connection while still allowing convenient disconnection during installation and maintenance.
Designed for industrial machinery, automation and control applications, this angled housing can accommodate compatible Ilme CK and CKF 3-pole plus earth inserts. When correctly assembled with suitable mating components and cable sealing accessories, the CK enclosure system provides reliable environmental protection for power and control connections.
Key Advantages
- Compact angled industrial connector housing for space-conscious installations.
- Size 21.21 format for compatible Ilme CK connector components.
- Integrated single locking lever provides secure connector mating.
- Durable self-extinguishing thermoplastic construction.
- Angled design supports convenient cable routing around machinery and equipment.
- Compatible with appropriate CK / CKF 3-pole plus earth inserts.
- Suitable for industrial machinery, automation and control applications.
Key Features
- Ilme CK series connector enclosure.
- Angled housing configuration.
- Size 21.21 enclosure format.
- Single locking lever.
- Insulating thermoplastic construction.
- Compact rectangular connector format.
- Designed for cable-mounted industrial connections.
- Compatible with suitable Ilme CK series inserts and mating enclosures.
- Suitable for power and control connector assemblies.
Compact Angled Housing for Industrial Connections
Angled connector housings are particularly useful where cables must be routed parallel or close to machinery surfaces rather than projecting directly away from the connector interface. The Ilme CK03IA provides this practical cable orientation while protecting the compatible connector insert and maintaining a compact installation footprint.
The integrated lever locking mechanism enables the housing to be secured to a compatible mating enclosure without separate fastening hardware. Combined with Ilme CK series inserts and appropriate cable accessories, the CK03IA provides a serviceable connection system for industrial equipment that may need to be disconnected during commissioning, maintenance or replacement.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Motor and actuator connections.
- Electrical control panels and cabinets.
- Compact power and control connections.
- Material handling and conveyor equipment.
- OEM machinery and equipment manufacturing.
