Why Choose the Ilme CK03IAN Angled Housing?

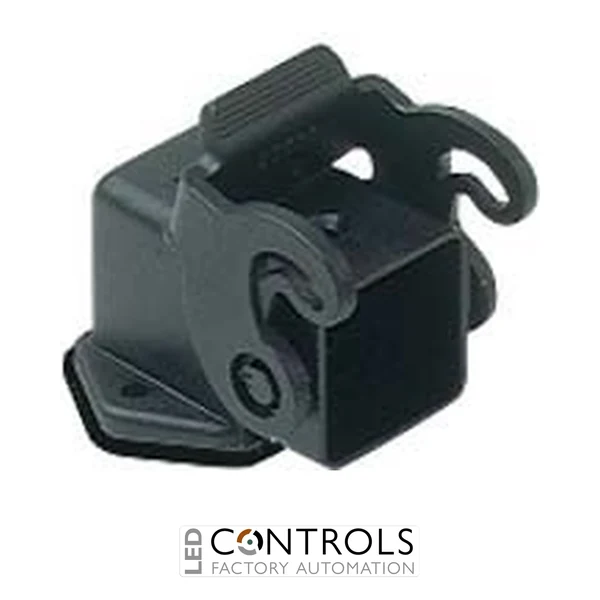

The Ilme CK03IAN is a compact black angled plastic housing with locking lever designed for Ilme CK series rectangular industrial connectors. With its size 21.21 format and angled cable orientation, it provides a practical enclosure solution for machinery and automation installations where space is restricted or cable routing requires a low-profile connection.
The CK03IAN uses a durable self-extinguishing thermoplastic enclosure, combining electrical insulation with a lightweight and mechanically robust construction. Its integrated single locking lever provides secure mating with a compatible Ilme connector enclosure while allowing the connection to be conveniently released during installation, servicing or equipment replacement.
Finished in black, the CK03IAN is designed for compatible Ilme size 21.21 connector inserts and is particularly suited to compact industrial power and control connections. Its angled configuration helps route the outgoing cable close to machinery or enclosure surfaces, reducing the space required compared with a straight-entry connector arrangement.
Key Advantages
- Compact angled industrial connector housing for space-conscious installations.
- Size 21.21 format for compatible Ilme connector inserts.
- Integrated single locking lever for secure connector mating.
- Durable self-extinguishing thermoplastic construction.
- Black housing for installations requiring the black enclosure variant.
- Angled design supports convenient cable routing around machinery and equipment.
- Suitable for industrial machinery, automation and control applications.
Key Features
- Ilme CK series connector enclosure.
- Angled housing configuration.
- Size 21.21 enclosure format.
- Single locking lever.
- Black enclosure finish.
- Self-extinguishing thermoplastic construction.
- Compact rectangular industrial connector format.
- Designed for cable-mounted connections.
- Compatible with suitable Ilme size 21.21 inserts and mating enclosures.
Compact Angled Housing for Industrial Connections
Angled connector housings are useful where the cable needs to run close to a machine, panel or equipment surface rather than projecting directly away from the connector interface. The Ilme CK03IAN provides this space-efficient cable orientation while enclosing and protecting the compatible connector insert.
The integrated lever locking mechanism allows the housing to be secured to a compatible mating enclosure without a separate external locking system. Combined with the appropriate Ilme insert, mating enclosure and cable accessories, the CK03IAN provides a compact and serviceable connection for industrial equipment that may need to be disconnected during commissioning or maintenance.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Motor and actuator connections.
- Electrical control panels and cabinets.
- Compact power and control connections.
- Material handling and conveyor equipment.
- OEM machinery and equipment manufacturing.
