Why Choose the Ilme CK03IAPS Angled Plastic Housing?

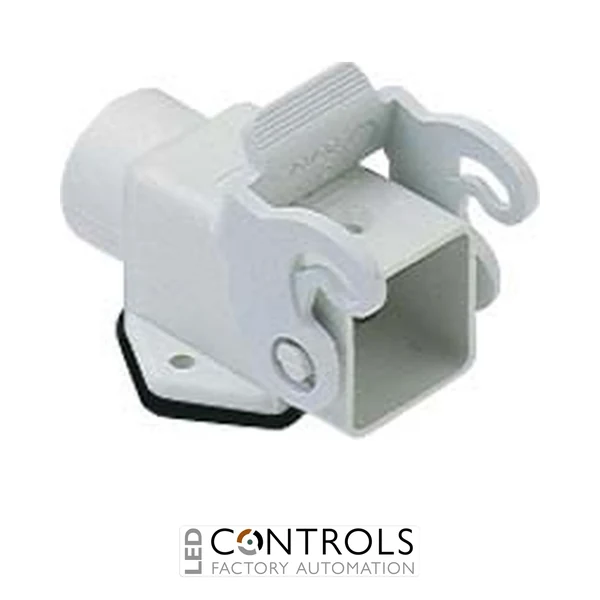

The Ilme CK03IAPS is a compact angled plastic housing with locking lever designed for reliable industrial multipole connector installations. Part of the Ilme CK series, this housing uses the compact 21.21 size format and provides a practical solution for machinery, automation equipment and electrical control systems where installation space is limited.
The CK03IAPS features a single locking lever for secure mating with a compatible Ilme connector component and a Pg 11 cable entry for cable routing. Its angled configuration helps direct cabling close to the installation surface, making it particularly useful where straight cable entry would require excessive clearance.
Manufactured from insulating thermoplastic material, the housing provides a lightweight and electrically insulating alternative to metal connector enclosures. The Ilme CK system is designed for modular use with compatible inserts, hoods and accessories, allowing the connector assembly to be configured for the electrical requirements of industrial equipment.
Key Advantages
- Compact angled plastic housing for industrial multipole connectors.
- Size 21.21 format minimises installation space requirements.
- Pg 11 cable entry provides convenient cable routing.
- Integrated single locking lever provides secure connector mating.
- Angled construction helps reduce cable clearance around machinery and panels.
- Insulating thermoplastic construction provides a lightweight and durable connector enclosure.
Key Features
- Ilme CK series connector housing.
- 21.21 housing size.
- Angled housing configuration.
- Single-lever locking system.
- Pg 11 cable entry.
- Insulating thermoplastic construction.
- Designed for compatible Ilme CK-series inserts and mating components.
- Suitable for machinery, control panels and industrial automation equipment.
Space-Efficient Industrial Connector Protection
Angled connector housings provide an effective solution where cables need to leave a connector assembly parallel or close to the equipment surface. The Ilme CK03IAPS reduces the clearance associated with straight cable entry while providing a protected enclosure for a compatible multipole connector insert.
The CK series is designed for modular industrial connectivity, enabling suitable inserts and mating connector components to be combined according to the application. The locking lever helps maintain a secure mechanical connection while also allowing the connector to be disconnected conveniently during equipment installation, servicing or maintenance.
Typical Applications
- Industrial machinery and machine-building equipment.
- Factory automation and production systems.
- Electrical control panels and cabinets.
- Packaging and processing machinery.
- Compact industrial multipole connections.
- OEM equipment requiring space-efficient angled cable routing.
