Why Choose the Ilme CK03IN Bulkhead Housing?

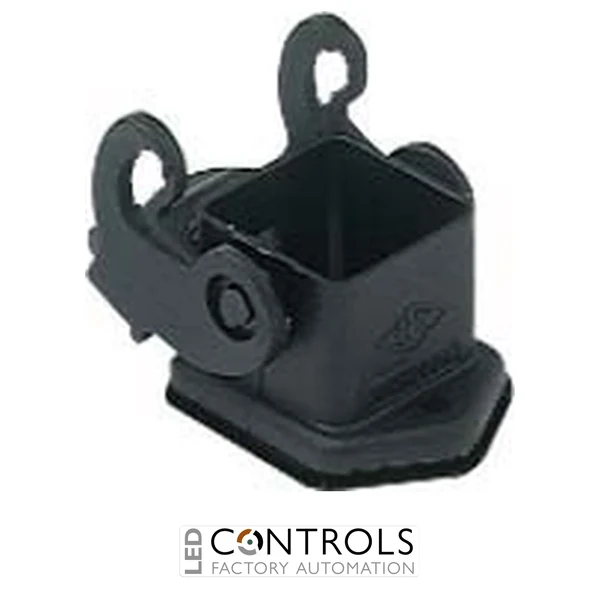

The Ilme CK03IN is a compact black insulating bulkhead mounting housing designed for Ilme CK series industrial multipole connector systems. Manufactured in the compact size 21.21 format, it provides a practical panel-mounted enclosure for compatible inserts used in machinery, automation and industrial control applications.
The CK03IN features one locking lever for secure mechanical coupling with a compatible mating hood or connector assembly. Its recessed bulkhead design mounts directly to an equipment panel and has no cable entry, making it particularly suitable for fixed equipment-side connector installations.
The standard insulating enclosure configuration provides IP44 protection when correctly assembled. Where greater environmental protection is required, Ilme specifies that the compatible CKR 65 gasket and screw kit can increase the assembled connector system to IP66, IP67 and IP69, subject to correct installation with compatible components.
Key Advantages
- Compact size 21.21 bulkhead housing for space-conscious industrial installations.
- Durable black insulating construction for compatible Ilme CK connector systems.
- Single locking lever provides straightforward and secure connector coupling.
- Panel-mounted design creates a fixed equipment-side connection point.
- Standard IP44 protection when correctly assembled.
- Can achieve IP66 / IP67 / IP69 protection with the compatible Ilme CKR 65 sealing kit.
Key Features
- Ilme CK series insulating enclosure.
- Bulkhead mounting housing.
- Size 21.21 enclosure format.
- One locking lever.
- Black housing colour.
- Designed without cable entry.
- Standard protection degree of IP44.
- Supports IP66 / IP67 / IP69 protection when used with the CKR 65 kit and correctly assembled.
- Designed for compatible Ilme CK series inserts and mating connector components.
Reliable Compact Housing for Industrial Connections
The Ilme CK03IN provides a fixed mounting point for compatible size 21.21 connector inserts, allowing power, control or signal circuits to be connected and disconnected at the equipment panel. The single-lever locking mechanism makes mating straightforward while helping retain the connected hood securely during normal industrial operation.
Its insulating black enclosure is particularly useful where a compact connector footprint is required. For installations exposed to greater levels of dust, moisture or washdown, the optional CKR 65 kit provides the additional gasket and fixing arrangement required to increase protection from the standard IP44 configuration to IP66, IP67 and IP69 when the complete compatible connector assembly is correctly installed.
Typical Applications
- Industrial machinery and production equipment.
- Automation and control panels.
- Compact machine electrical interfaces.
- Motor, actuator and sensor connections.
- Material handling and conveyor equipment.
- Modular machinery requiring detachable electrical connections.
