Why Choose the ILME CK03VGN Plastic Hood with Lever?

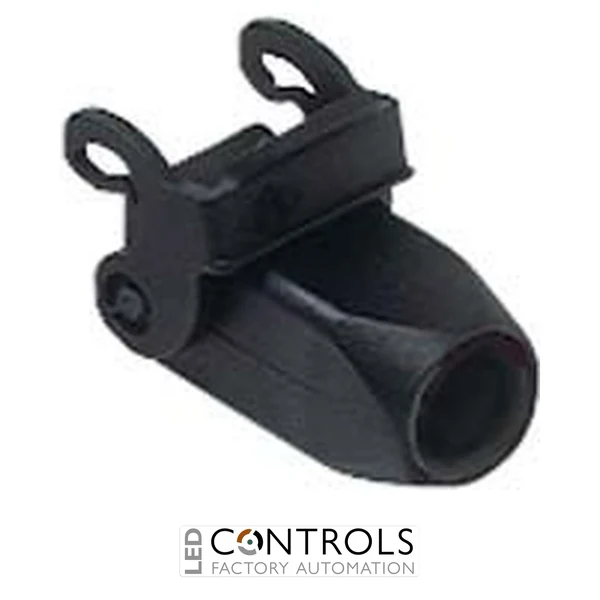

The ILME CK03VGN, manufacturer designation CK 03 VGN, is a compact plastic industrial connector hood with locking lever designed for ILME size 21.21 connector assemblies. Part of the ILME CK series, this jet-black hood combines a compact footprint with a top-entry cable arrangement for machinery, automation and industrial electrical installations.
The CK03VGN features a top-entry PG11 cable entry, allowing cable routing directly through the top of the hood. Its single-lever closing arrangement provides convenient and secure coupling with a compatible ILME housing, while the insulating construction makes it particularly suitable for compact industrial connector applications.
Manufactured in a RAL 9005 black finish, the CK03VGN uses the compact size 21.21 format and measures approximately 32 × 24 × 52 mm. The ILME CK enclosure family provides IP44 protection in standard configurations, with higher IP66 / IP67 / IP69 protection available for compatible assemblies when the appropriate ILME CKR 65 sealing kit is used.
Key Advantages
- Compact industrial connector hood for size 21.21 assemblies.
- Top-entry PG11 cable entry simplifies straight cable routing.
- Single locking lever provides convenient and secure connector coupling.
- RAL 9005 black finish for industrial installations.
- Compact approximately 32 × 24 × 52 mm enclosure dimensions.
- Suitable for machinery, automation, control and industrial electrical connections.
Key Features
- ILME CK series industrial connector hood.
- Size 21.21 connector format.
- Single-lever closing system.
- Top cable entry.
- PG11 threaded cable entry.
- RAL 9005 jet-black finish.
- Self-extinguishing thermoplastic construction.
- UL 94 V-2 insulating material flammability classification.
- IP44 protection for the CK enclosure system in standard configuration.
- Compatible with suitable ILME CK size 21.21 inserts and housings.
Compact Cable Entry for Industrial Connector Systems
Industrial connector hoods provide mechanical protection and cable entry for multipole connector assemblies used on machinery and automation equipment. The ILME CK03VGN combines a compact size 21.21 interface with a top-entry PG11 connection, making it particularly useful where cable routing needs to remain in line with the connector body.
The single-lever locking arrangement allows the hood to be securely coupled with a compatible housing while remaining straightforward to disconnect during maintenance or equipment changes. Its compact insulating construction makes the CK03VGN suitable for control, signal and power connector assemblies where installation space is limited.
Typical Applications
- Industrial machinery connections.
- Factory automation equipment.
- Electrical control systems.
- Production and packaging machinery.
- Machine power, control and signal connections.
- Robotics and automated equipment.
- Compatible ILME CK size 21.21 connector assemblies.
