Why Choose the ILME CK 03 VNS Black Plastic Hood?

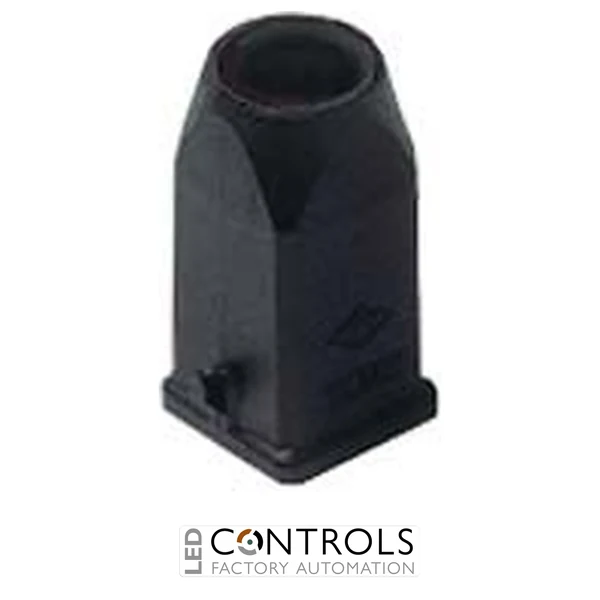

The ILME CK 03 VNS is a compact thermoplastic connector hood designed for compatible ILME CK series multipole connector inserts. Manufactured in the size 21.21 format and finished in RAL 9005 black, it provides a lightweight, insulating enclosure solution for industrial machinery, automation, control equipment and electrical installations.
The CK 03 VNS features two locking pegs for coupling with a compatible lever-equipped mating housing and incorporates a top-entry Pg11 cable connection. Its straight cable-entry configuration provides convenient routing directly from the top of the connector while maintaining the compact dimensions associated with ILME's size 21.21 connector system.
The hood provides IP44 protection in its standard configuration and can achieve IP66, IP67 and IP69 protection with the ILME CKR 65 gasket kit in the appropriate correctly assembled connector system. With a wide -40 °C to +125 °C operating temperature range and a mechanical life of at least 500 mating cycles, the CK 03 VNS is suitable for dependable industrial service.
Key Advantages
- Compact thermoplastic hood for industrial connector systems.
- Size 21.21 format for compatible ILME CK series inserts.
- Two locking pegs provide secure engagement with compatible lever-equipped housings.
- Top-entry Pg11 cable connection provides straightforward cable routing.
- IP44 protection as standard, with IP66 / IP67 / IP69 capability using the appropriate CKR 65 gasket kit.
- Distinctive RAL 9005 black finish for compatible industrial connector installations.
Key Features
- ILME CK series.
- Thermoplastic connector hood.
- Two locking pegs.
- Top cable entry Pg11.
- Size 21.21 enclosure format.
- 21 × 21 mm insert mounting format.
- Straight cable-entry configuration.
- RAL 9005 black colour.
- IP44 standard degree of protection.
- IP66 / IP67 / IP69 with CKR 65 in the applicable assembled configuration.
Compact Protection for Industrial Connector Systems
Thermoplastic connector hoods such as the ILME CK 03 VNS provide a compact enclosure for detachable industrial electrical connections. When assembled with compatible inserts, housings and cable accessories, the hood helps protect the connector assembly while providing a practical interface for power, control, signal or data connections.
The CK 03 VNS combines a straight Pg11 top cable entry with two locking pegs designed to engage with a compatible lever-equipped housing. Its compact size 21.21 format is particularly useful for space-conscious machinery and control installations, while the optional CKR 65 gasket kit enables enhanced ingress protection where greater resistance to dust and water is required.
Typical Applications
- Industrial machinery and automation equipment.
- Electrical control and distribution systems.
- Compact control cabinet connections.
- Robotics and automated production equipment.
- Industrial power, control, signal and data connections.
- Size 21.21 connector installations requiring a black Pg11 top-entry hood.
