Why Choose the Ilme CKA03IAPS Angled Metal Housing?

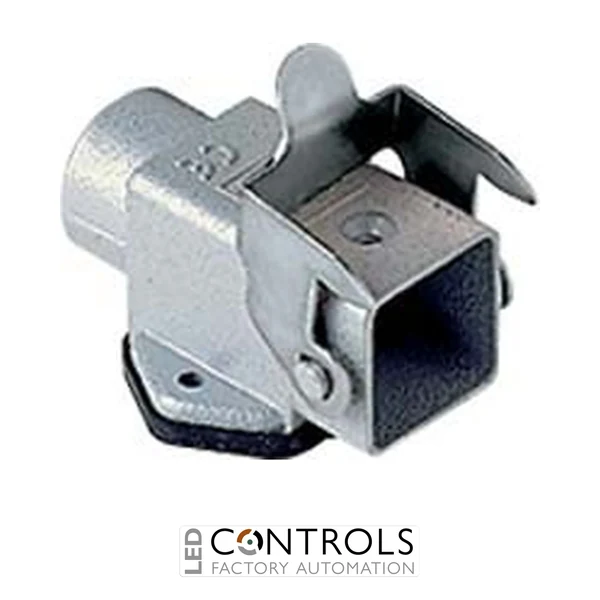

The Ilme CKA03IAPS is a compact angled bulkhead mounting connector housing with Pg11 cable entry, designed for industrial multipole connector assemblies in the 21.21 size format. Part of the Ilme CKA series, it combines robust zinc die-cast construction with a practical angled configuration for machinery, automation, control and OEM electrical equipment.
The CKA03IAPS incorporates a single locking lever for secure mechanical coupling with compatible Ilme hoods and connector components. Its angled bulkhead mounting design helps optimise connector access and cable routing where installation space is restricted, while the integrated Pg11 cable entry provides a convenient route for incoming cabling.
Manufactured from zinc die-cast metal with a galvanised steel lever and TPE gasket, the housing is designed for demanding industrial environments. It provides IP44 protection as standard and can achieve IP66, IP67 and IP69 protection when correctly assembled with the compatible Ilme CKR 65 accessory. Its operating temperature range of -40 to +125 °C supports use across a broad range of industrial conditions.
Key Advantages
- Compact size 21.21 angled bulkhead mounting housing.
- Robust zinc die-cast construction for industrial applications.
- Integrated single locking lever for secure connector coupling.
- Pg11 cable entry for convenient cable routing.
- Standard IP44 ingress protection.
- Supports IP66, IP67 and IP69 protection with the compatible CKR 65 accessory.
Key Features
- Ilme CKA series connector enclosure.
- Size 21.21 compact format.
- Angled bulkhead mounting configuration.
- Pg11 cable entry.
- 1-lever locking system.
- Main enclosure manufactured from zinc die-cast metal.
- Galvanised steel lever.
- Integrated TPE gasket.
- RAL 7040 grey finish.
- Operating temperature range of -40 to +125 °C.
Robust Angled Connectivity for Industrial Equipment
Angled bulkhead connector housings provide a practical solution where connector access and cable routing need to be managed within restricted installation space. The Ilme CKA03IAPS positions the connector interface at an angle to the mounting surface while providing a dedicated Pg11 cable entry, helping create neat and accessible industrial wiring assemblies.
The zinc die-cast enclosure and positive lever-locking mechanism provide a robust mechanical interface for compatible Ilme connector components. Combined with its broad operating temperature range and optional enhanced environmental sealing, the CKA03IAPS is well suited to dependable detachable connections in machinery and industrial automation systems.
Typical Applications
- Industrial machinery and automation systems.
- Control panel and bulkhead connector installations.
- Motor, actuator and equipment connections.
- Instrumentation and control systems.
- OEM machinery and electrical assemblies.
- Space-constrained industrial cable connections.
