Why Choose the Ilme CKA03ILS Bulkhead Mounting Housing?

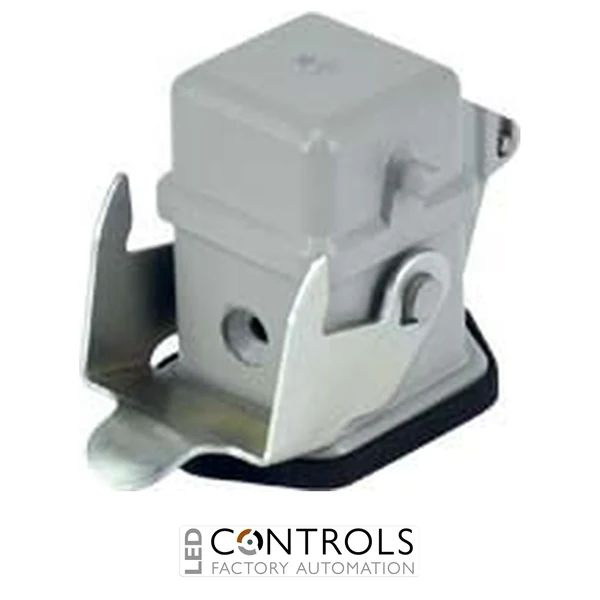

The Ilme CKA03ILS is a robust metal bulkhead mounting housing with self-closing cover designed for compact industrial multipole connector installations. Part of the Ilme CKA series, it uses the compact size 21.21 format and is specifically configured for compatible female connector inserts.
Manufactured from durable zinc die-cast metal, the CKA03ILS provides dependable mechanical protection for connector interfaces installed on machinery, control panels and industrial equipment. A rigid galvanised steel lever provides secure connector locking, while the integrated self-closing metal cover helps protect the connector interface when it is disconnected.
The housing incorporates a sealing gasket and provides IP44 protection in its standard configuration. When used with the appropriate Ilme CKR 65 sealing kit and compatible components, protection can be increased to IP66, IP67 and IP69, making this compact housing suitable for demanding industrial environments.
Key Advantages
- Heavy-duty zinc die-cast bulkhead mounting housing for industrial connectors.
- Compact size 21.21 format saves installation space.
- Designed specifically for compatible female inserts.
- Integrated self-closing metal cover protects the connector interface when unmated.
- Single rigid lever provides secure and convenient connector locking.
- IP44 protection as standard, upgradeable to IP66 / IP67 / IP69 with the appropriate CKR 65 kit.
Key Features
- Ilme CKA series metallic connector enclosure.
- Size 21.21 compact enclosure format.
- Bulkhead mounting configuration without cable entry.
- Suitable for compatible female connector inserts.
- One galvanised steel rigid locking lever.
- Integrated gasket and self-closing metal cover.
- Zinc die-cast main housing construction.
- RAL 7040 grey enclosure finish.
- Mechanical life of at least 500 mating cycles.
Reliable Connector Protection for Industrial Installations
Bulkhead connector housings provide a fixed and protected interface between removable industrial cabling and equipment-mounted electrical connections. The Ilme CKA03ILS combines a compact metal enclosure with a rigid lever locking system, helping maintain a secure connection while allowing equipment to be disconnected efficiently for installation, servicing or maintenance.
The self-closing cover provides additional protection for the female insert when the mating connector is removed. Combined with its zinc die-cast construction, gasket and optional enhanced sealing system, the CKA03ILS provides a durable connector enclosure solution for machine building, panel building and industrial automation applications.
Typical Applications
- Industrial machinery and automation equipment.
- Electrical control panels and cabinets.
- Machine-mounted multipole connector interfaces.
- Production and packaging machinery.
- Material handling and conveyor systems.
- OEM machinery requiring compact detachable electrical connections.
