Why Choose the Ilme CKA03ILSA Bulkhead Mounting Housing?

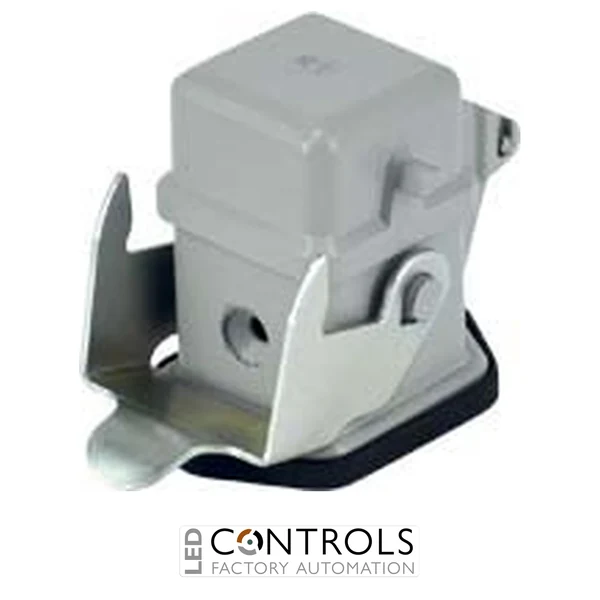

The Ilme CKA03ILSA is a compact and robust metal bulkhead mounting connector housing with self-closing cover designed for industrial multipole connections. Part of the Ilme CKA series, this enclosure uses the compact size 21.21 format and is specifically designed to accommodate compatible male connector inserts.
Manufactured from durable zinc die-cast metal, the CKA03ILSA provides reliable mechanical protection for connector interfaces mounted on machinery, control panels and industrial equipment. Its single galvanised steel rigid lever provides secure connector locking, while the integrated self-closing metal cover helps protect the connector interface whenever the mating connector is removed.
The CKA03ILSA provides IP44 protection in its standard configuration and can achieve IP66, IP67 and IP69 protection when correctly assembled with the appropriate Ilme CKR 65 sealing kit. With an operating temperature range from -40 °C to +125 °C and a mechanical life of at least 500 mating cycles, it is well suited to demanding machinery and automation applications.
Key Advantages
- Robust zinc die-cast bulkhead mounting housing for industrial connectors.
- Compact size 21.21 format for space-conscious machinery and panel installations.
- Specifically designed for compatible male connector inserts.
- Integrated self-closing metal cover protects the connector interface when unmated.
- Single galvanised steel rigid lever provides secure and convenient connector locking.
- IP44 protection as standard, upgradeable to IP66 / IP67 / IP69 with the appropriate CKR 65 sealing kit.
Key Features
- Ilme CKA series metallic connector enclosure.
- Size 21.21 compact enclosure format.
- Bulkhead mounting configuration without cable entry.
- Designed for compatible male inserts.
- One galvanised steel rigid locking lever.
- Integrated self-closing metal cover.
- Zinc die-cast main housing construction.
- RAL 7040 grey enclosure finish.
- Mechanical life of at least 500 mating cycles.
Reliable Connector Protection for Industrial Installations
Bulkhead connector housings provide a fixed connection point between removable industrial cabling and electrical equipment. The Ilme CKA03ILSA combines a compact metal enclosure with a rigid lever locking mechanism, providing a secure and service-friendly interface for compatible male multipole connector inserts.
The self-closing cover helps shield the connector interface when it is not mated, while the zinc die-cast construction provides the mechanical durability required for industrial machinery. The CKA enclosure system also offers enhanced ingress protection when combined with the appropriate CKR 65 sealing kit, making it adaptable to a wide range of operating environments.
Typical Applications
- Industrial machinery and automation equipment.
- Electrical control panels and cabinets.
- Machine-mounted multipole connector interfaces.
- Packaging and production machinery.
- Material handling and conveyor equipment.
- OEM machinery requiring compact detachable electrical connections.
