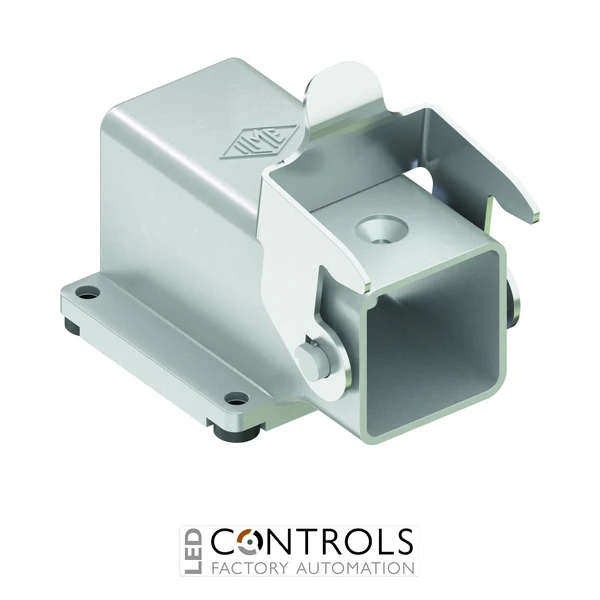

CKAS 03 IA4 ILME Angled housing metal with lever no entry Size 21.21
Ilme CKAS03IA4 is a size 21.21 angled zinc die-cast EMC bulkhead mounting housing with one rigid galvanised steel lever, four-screw fixing and no cable entry for industrial multipole connector assemblies.
SKU:CKAS03IA4Alt SKU:CKAS03IA4MPN:CKAS 03 IA4
Price
List Price£12.45ex VAT
Your Price (ex VAT)
£12.45
Manufacturer Lead TimePlease contact us for a delivery time before you order
Get the best trade pricesTrade exclusive
Create a trade account to unlock exclusive pricing, special offers and more.
The Ilme CKAS03IA4 is a compact angled metal bulkhead mounting housing from the Ilme EMC series, designed for size 21.21 industrial multipole connector assemblies. It features one rigid galvanised steel locking lever, a four-screw fixing arrangement and no cable entry, providing a robust panel-mounted enclosure for applications requiring electromagnetic compatibility.
Manufactured from zinc die-cast metal, the CKAS03IA4 provides the conductive enclosure construction required for effective EMC connector installations. Its angled design offers a space-efficient connector orientation, while the size 21.21 interface supports compatible Ilme compact inserts for power, signal and control connections.
The housing provides IP44 protection as standard and can achieve IP66 / IP67 / IP69 when correctly assembled with the appropriate CKR 65 sealing kit and compatible components. With an operating temperature range of -40 °C to +125 °C and a mechanical life of at least 500 mating cycles, it is designed for demanding industrial environments.
Key Advantages
Specialised EMC metal housing for electromagnetic shielding applications.
Supports enhanced IP66 / IP67 / IP69 protection with the CKR 65 sealing kit.
Key Features
Ilme EMC series enclosure.
Angled bulkhead mounting housing.
Size 21.21.
1 rigid lever.
Galvanised steel lever.
No cable entry.
Fixing by 4 screws.
Zinc die-cast metal construction.
Standard IP44 ingress protection.
Enhanced IP66 / IP67 / IP69 protection available with CKR 65.
Mechanical life of ≥500 cycles.
Compact EMC Protection for Industrial Connections
Industrial installations containing drives, motors, switching equipment and high-frequency electronics can generate electromagnetic interference that affects nearby control and communication circuits. The conductive zinc die-cast construction of the Ilme CKAS03IA4 makes it suitable for EMC connector systems where maintaining an effective screened connection through the enclosure is important.
Its angled bulkhead design provides a compact connector orientation at the equipment panel, while four fixing points ensure secure mechanical installation. Combined with compatible Ilme size 21.21 inserts, mating enclosures and EMC cable accessories, the CKAS03IA4 provides a durable connection solution for electrically demanding industrial environments.
Typical Applications
EMC-sensitive industrial connector assemblies.
Variable-speed drive and motor systems.
Industrial machinery and production equipment.
Factory automation systems.
Electrical control panels and cabinets.
Robotics and automated production equipment.
Signal and control connections near electrically noisy equipment.
Tick the specs you need, then view products that match.
Product Series
ILME C-Type
Frame Size
21.21
Housing Material
Metal (die-cast aluminium)
Device Type
Housing
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
Ilme
Series
EMC
Model
CKAS03IA4
Manufacturer designation
CKAS 03 IA4
Product type
Angled bulkhead mounting housing
Enclosure size
21.21
Housing configuration
Angled
Mounting type
Bulkhead mounting
Fixing
4 screws
Closing type
1 rigid lever
Lever material
Galvanised steel
Cable entry
None
Main material
Zinc die-cast
Colour
RAL 7040 grey
Standard protection rating
IP44
Enhanced protection
IP66 / IP67 / IP69 with CKR 65
UL enclosure rating
Type 12; Type 4 / 4X with CKR 65
Operating temperature
-40 °C to +125 °C
Mechanical life
≥500 cycles
Weight
approx. 89 g
Application
EMC industrial multipole connector assemblies
Frequently Asked Questions
What is the Ilme CKAS03IA4?
The CKAS03IA4 is an angled size 21.21 zinc die-cast bulkhead mounting housing from Ilme's EMC series, featuring one rigid locking lever and four-screw fixing.
Does the CKAS03IA4 have a cable entry?
No. The Ilme CKAS03IA4 is specified without a cable entry and is designed as an angled bulkhead mounting housing.
How is the CKAS03IA4 mounted?
The housing is designed for bulkhead mounting and fixing by four screws, providing a secure connection to the equipment or enclosure panel.
What protection rating does the CKAS03IA4 provide?
The housing provides IP44 protection as standard. When correctly assembled with the appropriate CKR 65 sealing kit and compatible components, the system can achieve IP66 / IP67 / IP69.
Why is the CKAS03IA4 suitable for EMC applications?
The CKAS03IA4 belongs to Ilme's EMC series and uses a conductive zinc die-cast enclosure, making it suitable for industrial connector assemblies designed to maintain electromagnetic shielding.
Trusted EMC Connectivity from Ilme
Ilme EMC connector enclosures combine conductive metal construction, secure locking and industrial environmental protection to support dependable screened power, signal and control connections in machinery and automation systems.
Product Series
ILME C-Type
Frame Size
21.21
Housing Material
Metal (die-cast aluminium)
Device Type
Housing
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
Ilme
Series
EMC
Model
CKAS03IA4
Manufacturer designation
CKAS 03 IA4
Product type
Angled bulkhead mounting housing
Enclosure size
21.21
Housing configuration
Angled
Mounting type
Bulkhead mounting
Fixing
4 screws
Closing type
1 rigid lever
Lever material
Galvanised steel
Cable entry
None
Main material
Zinc die-cast
Colour
RAL 7040 grey
Standard protection rating
IP44
Enhanced protection
IP66 / IP67 / IP69 with CKR 65
UL enclosure rating
Type 12; Type 4 / 4X with CKR 65
Operating temperature
-40 °C to +125 °C
Mechanical life
≥500 cycles
Weight
approx. 89 g
Application
EMC industrial multipole connector assemblies
