Why Choose the ILME CKAX03IAPS Angled Metal Housing?

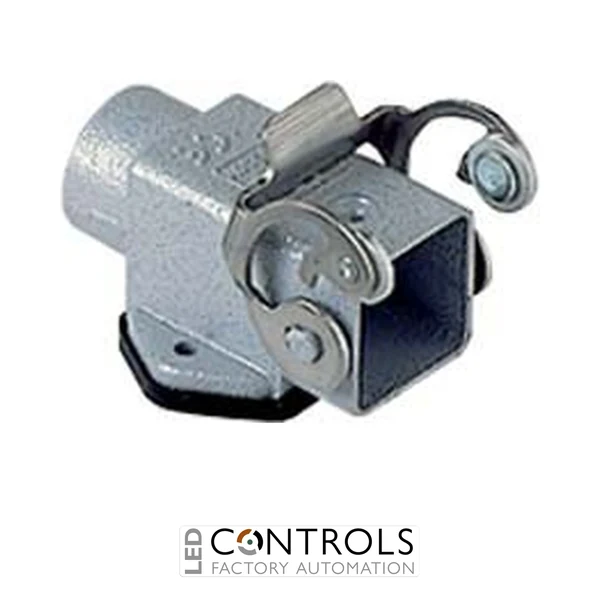

The ILME CKAX03IAPS, manufacturer designation CKAX 03 IAPS, is a compact angled bulkhead mounting metal housing designed for ILME size 21.21 industrial connector assemblies. Part of the ILME CKA series, it combines robust metal construction with a stainless steel locking lever and an integrated PG11 cable entry for reliable use in machinery, automation and industrial electrical installations.
The CKAX03IAPS features an angled bulkhead mounting configuration that provides convenient cable routing where installation space is restricted or a conventional straight connector arrangement is unsuitable. Its single stainless steel locking lever securely couples the housing with a compatible ILME hood while providing straightforward access for installation and maintenance.
Manufactured from zinc die-cast metal, the CKAX03IAPS uses the compact size 21.21 connector format and incorporates a PG11 threaded cable entry. The enclosure provides IP44 protection in its standard configuration and can achieve IP66, IP67 and IP69 protection with the appropriate ILME CKR 65 sealing accessory.
Key Advantages
- Robust angled metal housing for industrial connector assemblies.
- Compact size 21.21 format for space-constrained installations.
- Stainless steel locking lever provides durable and secure connector coupling.
- Integrated PG11 threaded cable entry for convenient cable routing.
- Zinc die-cast construction provides excellent mechanical durability.
- IP44 protection as standard, upgradeable to IP66 / IP67 / IP69 with the appropriate CKR 65 accessory.
Key Features
- ILME CKA series industrial connector enclosure.
- Angled bulkhead mounting housing.
- Size 21.21 connector format.
- Single stainless steel locking lever.
- PG11 threaded cable entry.
- Side-oriented cable entry for angled installations.
- Durable zinc die-cast metal construction.
- IP44 standard degree of protection.
- IP66 / IP67 / IP69 protection available with a compatible CKR 65 sealing kit.
- Designed for compatible ILME CK, CKS, CD and CQ size 21.21 inserts.
Robust Angled Connectivity for Industrial Equipment
Angled connector housings provide a practical solution where machinery layouts, enclosure dimensions or cable-routing requirements make conventional straight connector arrangements difficult. The ILME CKAX03IAPS combines a compact size 21.21 mounting interface with an angled housing and PG11 cable entry, helping cables leave the connector assembly in a controlled direction.
The zinc die-cast body provides robust mechanical protection for the compatible connector insert, while the stainless steel lever creates a secure and serviceable locking arrangement. This makes the CKAX03IAPS particularly suitable for industrial applications requiring dependable connections alongside convenient access for servicing and equipment changes.
Typical Applications
- Industrial machinery connections.
- Factory automation equipment.
- Electrical control panels and cabinets.
- Production and packaging machinery.
- Machine power, control and signal connections.
- Robotics and automated equipment.
- Applications requiring compact angled cable routing.
