Why Choose the ILME CKAX03ILS Bulkhead Metal Housing and Cover?

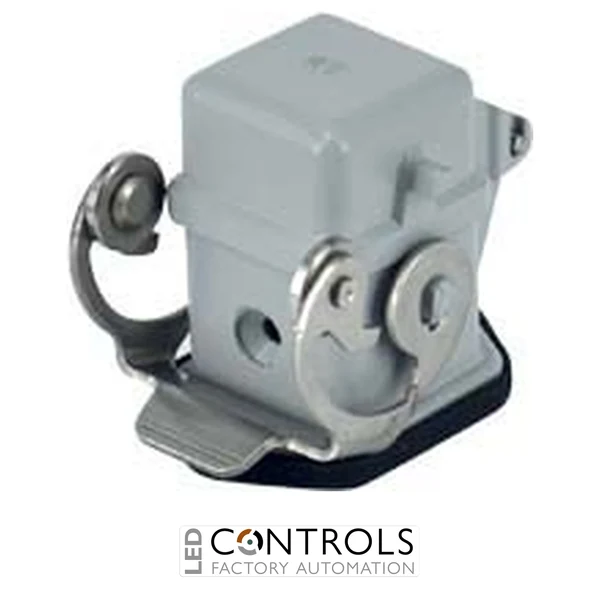

The ILME CKAX03ILS, manufacturer designation CKAX 03 ILS, is a compact metal bulkhead mounting housing with protective cover and stainless steel locking lever designed for ILME size 21.21 industrial connector assemblies. Part of the ILME CKA series, it provides a robust fixed mounting solution for female connector configurations used in machinery, automation and industrial electrical installations.
Designed for female connection applications, the CKAX03ILS combines a panel-mounted metal housing with an integrated protective cover. The stainless steel lever provides secure connector locking when the assembly is in use, while the cover protects the connector interface when disconnected, helping reduce exposure to dust, moisture and accidental contact.
The CKAX03ILS uses the compact size 21.21 connector format with a 21 × 21 mm mounting interface. Its robust metal construction and sealing arrangement provide IP44, IP66, IP67 and IP69 protection according to the assembled configuration, making it particularly suitable for demanding industrial equipment where a protected fixed connector interface is required.
Key Advantages
- Robust bulkhead metal housing for female connector applications.
- Supplied with an integrated protective cover for the disconnected interface.
- Stainless steel locking lever provides durable and secure connector coupling.
- Compact size 21.21 format for space-efficient panel installations.
- Supports IP44, IP66, IP67 and IP69 protection according to the assembled configuration.
- Ideal for fixed machinery, automation and industrial control-panel connections.
Key Features
- ILME CKA series industrial connector enclosure.
- Bulkhead / panel mounting housing.
- Designed for female connection configurations.
- Size 21.21 compact connector format.
- Integrated protective cover.
- Single stainless steel locking lever.
- Durable metal enclosure construction.
- IP44 / IP66 / IP67 / IP69 protection according to configuration.
- 21 × 21 mm insert mounting size.
- Suitable for compatible ILME CKA size 21.21 connector components.
Protected Fixed Connectivity for Industrial Equipment
Bulkhead connector housings provide a secure fixed interface between electrical equipment and detachable machine cabling. The ILME CKAX03ILS mounts directly to a panel or enclosure and combines the connector housing, stainless steel locking mechanism and protective cover in a compact size 21.21 assembly.
When the mating connector is removed, the integrated cover can protect the fixed connector interface from environmental contamination and accidental contact. The stainless steel lever provides a robust locking mechanism for repeated connection and disconnection, making the CKAX03ILS well suited to machinery and automation systems that require dependable, serviceable electrical interfaces.
Typical Applications
- Industrial machinery bulkhead connections.
- Factory automation equipment.
- Electrical control panels and cabinets.
- Production and packaging machinery.
- Machine power, control and signal connections.
- Robotics and automated production systems.
- Fixed connector interfaces requiring a protective cover.
