Why Choose the Ilme CKAX03ILSA Bulkhead Metal Housing with Steel Lever?

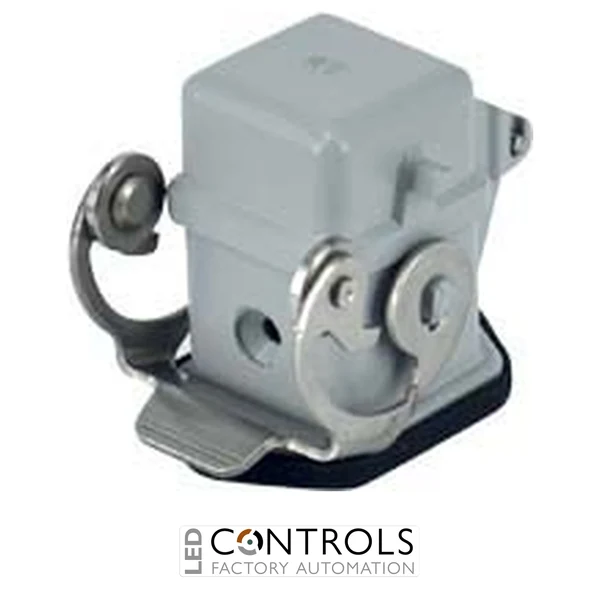

The Ilme CKAX03ILSA is a robust bulkhead metal housing with steel lever designed for reliable protection and secure connection of heavy-duty industrial rectangular connectors. Part of the advanced Ilme CKAX series, this housing provides excellent mechanical strength and dependable performance in demanding industrial environments.
Manufactured with a durable metal construction and fitted with a steel locking lever, the CKAX03ILSA provides secure mating and protection for compatible male connector inserts. Its bulkhead mounting design allows direct installation through enclosure walls, panels or machine structures where reliable electrical connections are required.
The 21.21 size housing format makes the CKAX03ILSA suitable for compact industrial connector applications, helping maintain protection, alignment and long service life in automation, machinery and control systems.
Key Advantages
Durable metal bulkhead housing for industrial connectors.
Integrated steel lever locking system for secure mating.
Designed for 21.21 size connector inserts.
Provides excellent mechanical protection in harsh industrial environments.
Suitable for machine building and automation applications.
Reliable Ilme construction for long operational service life.
Key Features
Ilme CKAX series bulkhead housing.
Model: CKAX03ILSA.
Product type: Metal bulkhead housing with cover.
Locking system: Steel lever.
Compatible size: 21.21.
Male connector housing configuration.
Robust metallic enclosure construction.
Designed for heavy-duty rectangular connector systems.
Reliable Protection for Industrial Connector Systems
The Ilme CKAX03ILSA bulkhead housing provides a secure mechanical enclosure for industrial connectors, helping protect internal contacts from external impact and environmental conditions. The strong metal body and steel lever mechanism ensure dependable connection retention during machine operation.
Designed for professional industrial installations, CKAX housings are widely used where connector durability, safety and reliable service are essential. They provide a practical solution for automation equipment, control cabinets and machinery interconnections.
Typical Applications
Industrial automation machinery.
Machine building and OEM equipment.
Control panels and electrical cabinets.
Robotics and production systems.
Heavy-duty industrial wiring installations.
Manufacturing and process equipment.
Technical Specifications
Tick the specs you need, then view products that match.
Housing Material
Metal (die-cast aluminium)
Product Series
ILME C-Type
Contact Gender
Male
Device Type
Housing
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
Ilme
Series
CKAX
Model
CKAX03ILSA
Product type
Bulkhead metal housing with cover
Connection type
Male connection
Insert size
21.21
Locking mechanism
Steel lever
Material
Metal housing construction
Mounting type
Bulkhead mounting
Application
Heavy-duty rectangular connectors
Frequently Asked Questions
What is the Ilme CKAX03ILSA used for?
The Ilme CKAX03ILSA is a metal bulkhead housing designed to protect and secure heavy-duty rectangular connector inserts in industrial applications.
What type of locking system does this housing use?
The CKAX03ILSA uses a steel lever locking mechanism to provide secure connector mating.
What connector size is compatible with the CKAX03ILSA?
The housing is designed for 21.21 size industrial connector inserts.
Where is this Ilme housing typically installed?
The CKAX03ILSA is typically installed on machinery, control panels and industrial automation equipment requiring reliable connector protection.
What are the benefits of a metal connector housing?
A metal housing provides improved mechanical protection, durability and secure operation in demanding industrial environments.
Trusted by Industrial Automation Professionals
Ilme heavy-duty connector housings are trusted worldwide for secure connections, robust protection and reliable performance in industrial automation and machinery applications.
Housing Material
Metal (die-cast aluminium)
Product Series
ILME C-Type
Contact Gender
Male
Device Type
Housing
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
Ilme
Series
CKAX
Model
CKAX03ILSA
Product type
Bulkhead metal housing with cover
Connection type
Male connection
Insert size
21.21
Locking mechanism
Steel lever
Material
Metal housing construction
Mounting type
Bulkhead mounting
Application
Heavy-duty rectangular connectors
