Why Choose the ILME CKAXW03I Bulkhead Mounting Housing?

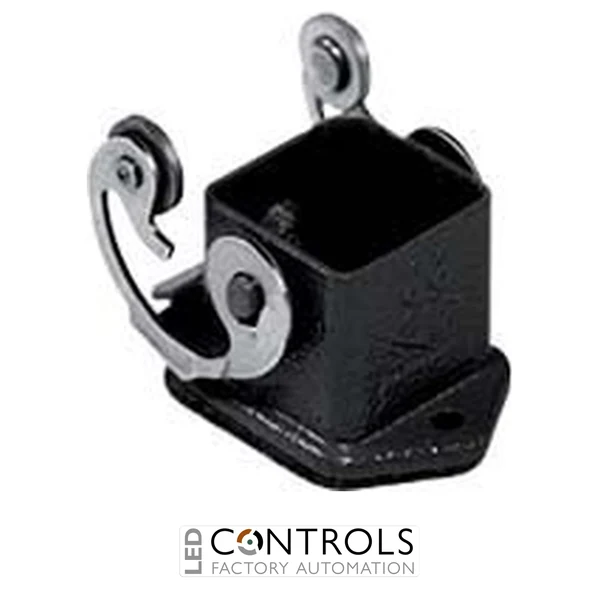

The ILME CKAXW03I is a compact and durable metal bulkhead mounting housing for industrial multipole connectors, designed to provide secure connector mounting and reliable environmental protection in demanding machinery, automation and electrical installations. As part of the ILME CKA W-Type series for aggressive environments, it combines a robust zinc-alloy enclosure with a stainless steel locking lever for dependable long-term operation.
The CKAXW03I uses the compact size 21.21 connector format and is supplied without a cable entry, making it suitable for direct bulkhead or panel-mounted connector installations. Its single stainless steel lever provides secure mechanical locking with a compatible hood while offering improved resistance to corrosion and harsh industrial conditions.
The housing provides IP44 protection as standard and can achieve IP66, IP67 and IP69 protection when used with the appropriate ILME CKR 65 sealing kit. With an ambient operating temperature range of -40 °C to +125 °C and a mechanical life of at least 500 mating cycles, the CKAXW03I is well suited to industrial installations requiring compact dimensions and dependable connector protection.
Key Advantages
- Robust metal bulkhead mounting housing for industrial connectors.
- Compact size 21.21 format for space-constrained machinery and panels.
- Stainless steel locking lever for secure and corrosion-resistant operation.
- Designed as part of the ILME W-Type range for aggressive environments.
- IP44 protection as standard, upgradeable to IP66 / IP67 / IP69 with the appropriate CKR 65 kit.
- Wide -40 °C to +125 °C ambient temperature range.
Key Features
- ILME CKA W-Type industrial connector enclosure.
- Size 21.21 compact housing format.
- Zinc-alloy metal housing.
- One stainless steel locking lever.
- Bulkhead / panel mounting configuration.
- No cable entry in the housing.
- Compatible with appropriate ILME size 21.21 connector inserts and hoods.
- Designed for at least 500 mechanical mating cycles.
Reliable Connector Mounting for Aggressive Environments
Bulkhead mounting housings such as the ILME CKAXW03I provide a secure fixed interface between industrial equipment and detachable multipole connector assemblies. The housing mounts directly to a machine enclosure or control panel, while the locking lever secures a compatible mating hood to help maintain a stable electrical connection.
The ILME W-Type enclosure range is specifically designed for demanding and aggressive industrial environments. The CKAXW03I combines a robust metal body, stainless steel lever and optional enhanced sealing system, making it suitable for applications where exposure to moisture, contaminants, corrosion and frequent connection cycles must be considered.
Typical Applications
- Industrial machinery and factory automation systems.
- Control panels and electrical cabinets.
- Machine tools and production equipment.
- Food, processing and other demanding industrial environments.
- Material handling and conveyor installations.
- Motor, sensor and actuator connection systems.
