Why Choose the Ilme CKF04N Female Connector Insert?

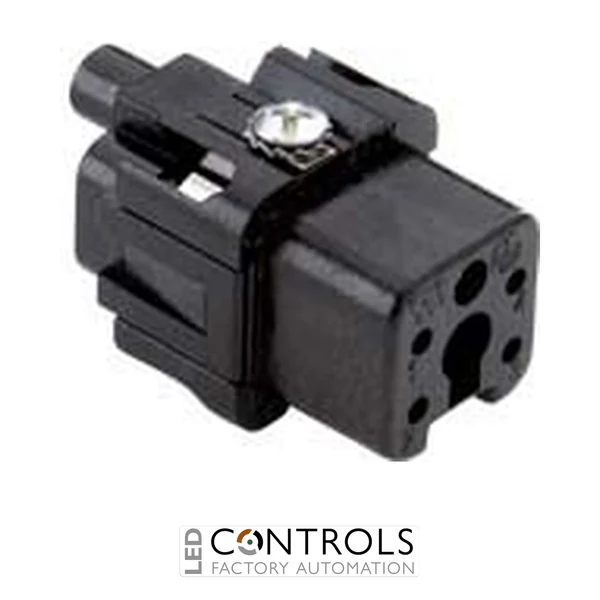

The Ilme CKF04N is a compact female multipole connector insert designed for reliable power and control connections in industrial machinery and automation equipment. Part of the Ilme CK series, this black insert provides 4 poles plus protective earth (4P+PE) within the compact size 21.21 connector format.
The CKF04N uses proven screw terminal connections, providing straightforward conductor termination without requiring separate crimp contacts or specialist crimping tools. Its female contacts are manufactured from copper alloy with a silver-plated contact surface, supporting reliable electrical performance and repeated mating in industrial connector systems.
Rated at 10 A and 230/400 V under EN 61984 conditions, with a 4 kV rated impulse withstand voltage and pollution degree 3, the CKF04N is suitable for industrial power, auxiliary and control circuits. Screw terminals accommodate conductors from 0.75–2.5 mm², making the insert a versatile choice for machine building and panel wiring.
Key Advantages
- Compact 4-pole plus protective earth female insert for industrial connections.
- 10 A current rating suitable for power, auxiliary and control circuits.
- 230/400 V rated voltage according to EN 61984 operating conditions.
- Simple and dependable screw terminal connection without separate crimp contacts.
- Silver-plated female contacts provide reliable electrical connection performance.
- Compact size 21.21 format integrates with compatible Ilme CK connector enclosures.
Key Features
- Ilme CK series female connector insert.
- 4 poles + PE contact configuration.
- 10 A rated current.
- 230/400 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Pollution degree 3.
- Screw terminal connection.
- Conductor capacity of 0.75–2.5 mm² / 18–14 AWG.
- Turned silver-plated copper-alloy contacts.
- Black polycarbonate insulating body.
Reliable Power and Control Connections for Industrial Equipment
Multipole connector inserts allow several electrical circuits to be connected through a single detachable industrial interface. The Ilme CKF04N combines four current-carrying contacts with a dedicated protective earth connection, enabling compact and organised wiring between machinery, control panels and removable equipment.
Its screw terminals simplify field wiring and maintenance, while silver-plated contacts provide dependable conductivity across repeated mating cycles. When installed in a compatible Ilme size 21.21 hood or housing, the CKF04N forms part of a robust connector assembly suited to machine building, automation and industrial control applications.
Typical Applications
- Industrial machinery and machine building.
- Electrical control panels and cabinets.
- Power and auxiliary circuit connections.
- Automation and production equipment.
- Packaging and material handling machinery.
- OEM equipment requiring compact detachable multipole connections.
