Why Choose the Ilme CKMD04 Gold-Plated Male Connector Insert?

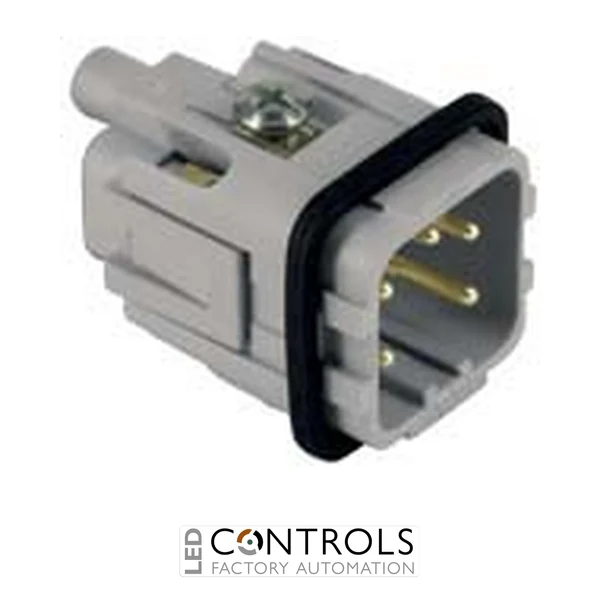

The Ilme CKMD04 is a compact male multipole connector insert with gold-plated contacts designed for reliable power, control and signal connections in industrial machinery and automation equipment. Part of the Ilme CKD series, it provides 4 poles plus protective earth (4P+PE) within the compact size 21.21 connector format.
The CKMD04 uses proven screw terminal connections, allowing conductors to be terminated directly without separate crimp contacts or specialist crimping tools. Its male contacts are gold plated, providing a high-quality contact interface particularly suited to applications where dependable electrical continuity and resistance to contact-surface degradation are important.
Rated at 10 A and 230/400 V according to EN 61984 characteristics, with a 4 kV rated impulse withstand voltage and pollution degree 3, the CKMD04 is suitable for industrial power, auxiliary and control circuits. The screw terminals accept conductors from 0.75–2.5 mm², while the compact size 21.21 construction integrates with compatible Ilme connector hoods and housings.
Key Advantages
- Compact 4-pole plus protective earth male insert for industrial multipole connections.
- Gold-plated contacts provide a high-quality and dependable electrical contact interface.
- 10 A current rating suitable for industrial power, auxiliary and control circuits.
- 230/400 V rated voltage according to EN 61984 characteristics.
- Simple screw terminal connection eliminates the need for separate crimp contacts.
- Compact size 21.21 format integrates with compatible Ilme industrial connector enclosures.
Key Features
- Ilme CKD series connector insert.
- 4 poles + PE male contact configuration.
- Gold-plated male contacts.
- 10 A rated current.
- 230/400 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Pollution degree 3.
- Screw terminal connection in accordance with IEC 60999-1.
- Conductor capacity of 0.75–2.5 mm² / 18–14 AWG.
- Compact 21 × 21 mm insert mounting format.
Reliable Gold-Plated Connections for Industrial Equipment
Multipole connector inserts provide a convenient detachable interface for several electrical circuits within a single compact connector assembly. The Ilme CKMD04 combines four current-carrying poles with a dedicated protective earth connection, allowing organised and service-friendly wiring between machinery, control panels and removable equipment.
The gold-plated male contacts distinguish the CKMD04 from standard-contact CK variants and provide a durable contact surface for applications requiring dependable electrical continuity. Combined with screw terminal wiring and compatibility with Ilme size 21.21 enclosures, the insert provides a compact solution for industrial automation, machine building and control applications.
Typical Applications
- Industrial machinery and machine building.
- Electrical control panels and cabinets.
- Automation and production equipment.
- Power, auxiliary and control circuit connections.
- Instrumentation and low-level industrial signal connections.
- OEM equipment requiring compact detachable multipole connections.
