Why Choose the Ilme CKSHF04 SQUICH® Female Insert?

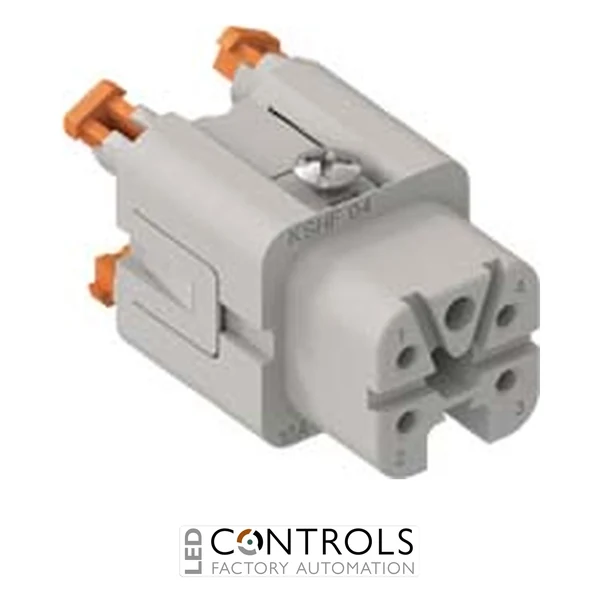

The Ilme CKSHF04 is a compact female multipole connector insert with 4 poles plus protective earth, designed for reliable and efficient electrical connections in industrial machinery, automation equipment and control systems. Part of the Ilme CKSH series, it combines the compact size 21.21 connector format with Ilme's SQUICH® spring-terminal connection technology.
Rated at 10 A, the CKSHF04 provides four female working contacts together with a dedicated protective earth connection. The SQUICH® spring-terminal system enables rapid conductor termination without conventional screw tightening or separate crimp contacts, helping reduce assembly time and simplify installation and servicing.
Designed for installation in compatible Ilme size 21.21 hoods and housings, the CKSHF04 provides a compact detachable interface for power, control and auxiliary circuits. Its spring-clamp termination system makes it particularly suitable for machine builders and panel manufacturers seeking fast, repeatable wiring within space-conscious industrial equipment.
Key Advantages
- Compact 4-pole plus protective earth female connector insert.
- 10 A rated current for industrial electrical circuits.
- SQUICH® spring-terminal technology enables fast conductor termination.
- No separate crimp contacts are required for wiring the insert.
- Dedicated protective earth contact supports equipment grounding.
- Compact size 21.21 format helps minimise installation space.
Key Features
- Ilme CKSH series female insert.
- 4 poles + protective earth.
- Female connection.
- 10 A rated current.
- SQUICH® spring-terminal connection.
- Size 21.21 connector format.
- Dedicated protective earth connection.
- Designed for compatible Ilme industrial connector hoods and housings.
- Suitable for detachable power, control and auxiliary connections.
- Designed for rapid industrial wiring and maintenance.
Ilme SQUICH® technology provides a practical alternative to conventional screw and crimp termination in industrial connector assemblies. Conductors are secured using spring terminals, eliminating the need to tighten individual terminal screws and avoiding the separate contacts and crimping process associated with crimp-terminated inserts.
With four working poles plus protective earth, the CKSHF04 can provide a compact detachable interface for suitable power, control and auxiliary circuits. When installed in a compatible size 21.21 Ilme enclosure and paired with the corresponding male insert, it forms part of a modular industrial connector system designed to simplify equipment installation, servicing and replacement.
Typical Applications
- Industrial machinery and machine-building equipment.
- Factory automation and production systems.
- Electrical control panels and enclosures.
- Motors, actuators and auxiliary equipment.
- Packaging and processing machinery.
- Material-handling and conveyor systems.
- OEM equipment requiring compact detachable electrical connections.
