Why Choose the ILME CKX03VGS Plastic Hood?

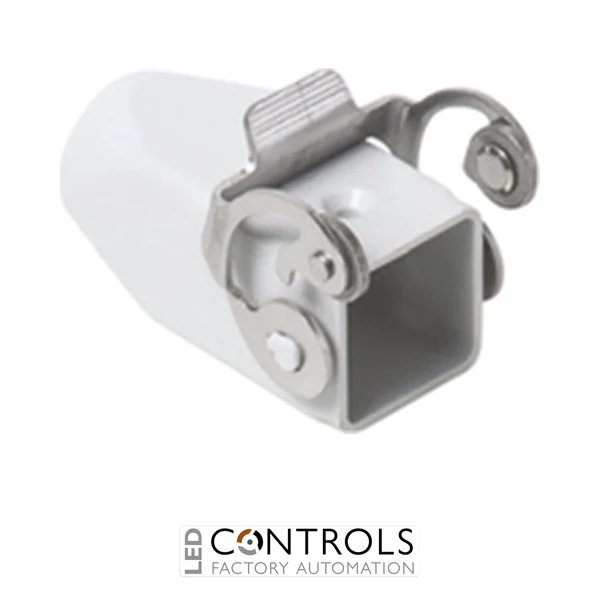

The ILME CKX03VGS is a compact and durable insulating industrial connector hood designed to protect compatible multipole connector inserts in machinery, automation and electrical installations. Part of the ILME CKX standard insulating series, it combines a robust thermoplastic enclosure with a stainless steel locking lever and the compact size 21.21 connector format.
The CKX03VGS features a top-entry Pg11 cable opening and is supplied without a cable gland, allowing the installer to select a suitable gland for the application. Its single stainless steel lever provides secure mechanical locking with a compatible ILME housing while offering excellent durability and corrosion resistance.
Designed for compact industrial connections, the CKX03VGS provides IP44 protection in a correctly assembled standard configuration and can achieve IP66, IP67 and IP69 protection with the appropriate ILME CKR 65 or CKR 65 D gasket and screw kit. Its approximately 52 mm overall height and 33 mm width make it particularly suitable for equipment where installation space is limited.
Key Advantages
- Compact insulating connector hood for industrial applications.
- Size 21.21 format for space-constrained machinery and control equipment.
- Stainless steel locking lever provides secure and durable connector retention.
- Top-entry Pg11 cable opening for straightforward cable routing.
- Supplied without cable gland for installation flexibility.
- Enhanced IP66, IP67 and IP69 protection available with the appropriate CKR 65 / CKR 65 D sealing kit.
Key Features
- ILME CKX standard insulating series.
- Size 21.21 compact industrial connector format.
- Durable insulating thermoplastic construction.
- One stainless steel locking lever.
- Pg11 top cable entry.
- Without cable gland.
- White enclosure finish.
- Compatible with multiple ILME size 21.21 insert families.
Reliable Insulating Protection for Industrial Connections
Industrial connector hoods such as the ILME CKX03VGS form the cable-side enclosure of a multipole connector assembly, protecting the insert and conductor terminations while providing a secure interface with the mating housing. The insulating enclosure also provides a lightweight alternative to metal connector hoods for suitable machinery and automation applications.
The CKX size 21.21 platform supports a range of compatible ILME inserts, including CK, CKSH, CD and CQ configurations. Combined with its stainless steel lever, Pg11 top cable entry and optional enhanced sealing system, the CKX03VGS provides a versatile solution for compact industrial power, signal and control connections.
Typical Applications
- Industrial machinery and factory automation systems.
- Control panels and electrical equipment.
- Machine tools and production machinery.
- Conveyor and material handling systems.
- Motor, sensor and actuator connections.
- OEM equipment requiring compact detachable electrical connections.
